U.S. Solid 1/2" Motorized Ball Valve - 9-24V DC Brass Electric Valve, Normally Closed (N.C.), Full Port, 5-WIRE Control with Open/Closed Signal Output
U.S. Solid 1/2" Motorized Ball Valve - 9-24V DC Brass Electric Valve, Normally Closed (N.C.), Full Port, 5-WIRE Control with Open/Closed Signal Output
Ball Valves
Product details
About This

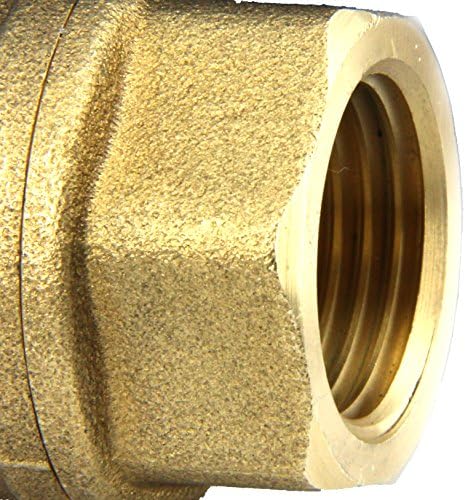

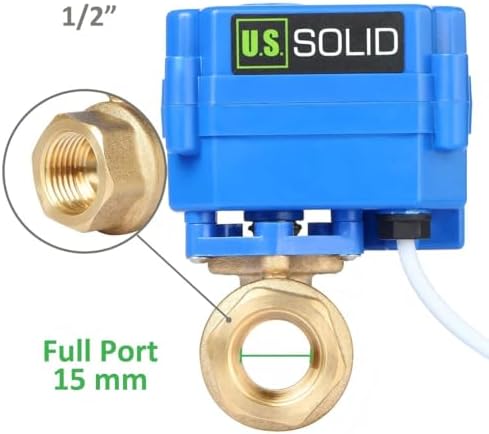

- FULL PORT BRASS BODY: The 1/2 inch NPT full-port brass valve has a 15 mm bore for full flow with minimal pressure drop on water, air, oil, and gas lines; the brass body contains lead and is not for potable or drinking water
- 9-24 V DC MOTORIZED ACTUATION: Runs on 9-24 V DC at 5 W and drives fully open or closed in 6 to 8 seconds with 6 Nm of torque; the motor draws power only while moving, so after reaching position its low power draw helps reduce heat buildup

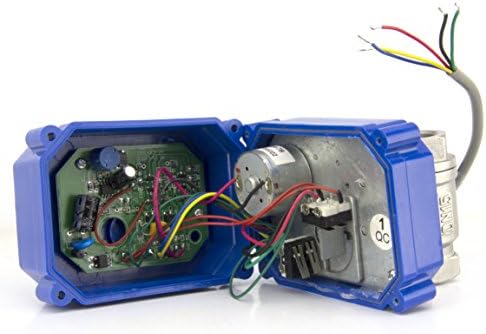

- 5-WIRE CONTROL WITH OPEN/CLOSED SIGNAL OUTPUT: Yellow and blue wires drive open and close; removing power holds valve position; green/black and red/black signal wires connect to your PLC, controller, or panel to show whether the valve is open or closed
- NORMALLY CLOSED OPERATION: Ships in the closed position and opens only when energized, keeping lines shut by default for automatic isolation and leak control in unattended irrigation, HVAC, and water transfer systems
- IP65 RATED DURABILITY: The IP65 enclosure resists dust and water spray, and PTFE and silicone seats with a brass body handle up to 1.0 MPa (145 psi) for a rated 80,000 to 100,000 cycles of reliable service
Overview
- Material : Brass
- Brand : U.S. Solid
- Exterior Finish : Brass
- Inlet Connection Size : 1/2 inches
- Inlet Connection Type : National Pipe Tapered
- Outlet Connection Type : NPT
- Maximum Operating Pressure : 1000 pascal
- Number of Ports : 2
- Outlet Connection Size : 0.5 inches
- Specification Met : IP65, RoHS
