U.S. Solid 1/4 in Motorized Ball Valve, NSF Certified 304 Stainless Steel Electric Valve, Normally Closed, 9-24V AC/DC, 2-Wire Auto Return, Full Port
U.S. Solid 1/4 in Motorized Ball Valve, NSF Certified 304 Stainless Steel Electric Valve, Normally Closed, 9-24V AC/DC, 2-Wire Auto Return, Full Port
Ball Valves
Product details
About This
- NSF CERTIFIED 304 STAINLESS STEEL: Built with NSF Certified lead-free 304 stainless steel metal components that resist corrosion and ensure safe drinking water for potable water lines, home brewing, and food-grade fluid transfer

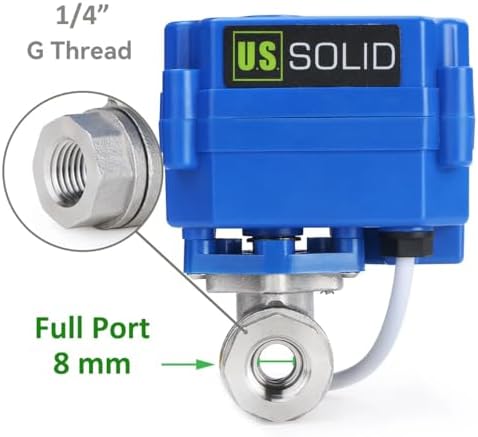

- FULL PORT AND HIGH PRESSURE: Full-port bore with an 8 mm flow aperture matches pipe size for unrestricted flow; PTFE seats and silicone seals handle working pressures up to 1.0 MPa (145 psi) through a compact 1/4 in NPT body
- WIDE 9-24 V AC/DC OPERATION: Compatible with AC or DC power across 9-24 V; opens or closes in 3 to 5 seconds, and an internal limit switch cuts power at end of travel to eliminate heat buildup and lower energy consumption
- 2-WIRE AUTO RETURN NORMALLY CLOSED: Simple 2-wire hookup drives the valve open when energized and automatically returns it to the closed position the moment power is cut for reliable automated line isolation
- IP65 RATED SOLENOID ALTERNATIVE: IP65 enclosure seals against dust and water spray; rated for 80,000 to 100,000 cycles with zero holding current to stay cool during long runs in irrigation, HVAC, and RV plumbing
Overview
- Material : Stainless Steel
- Brand : U.S. Solid

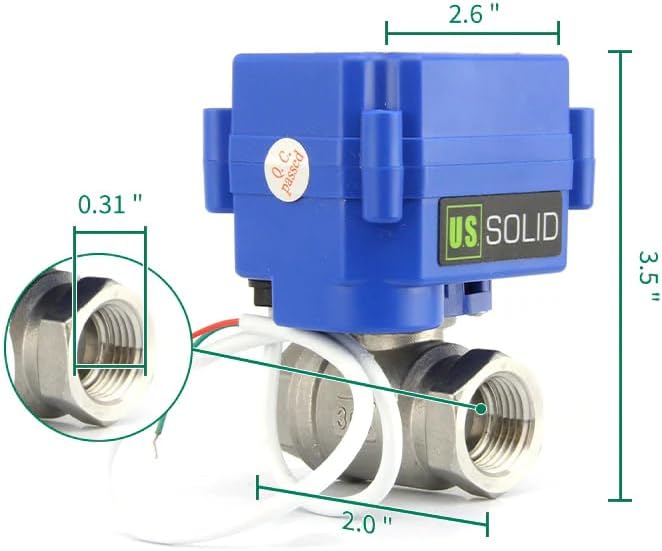

- Item dimensions L x W x H : 3.35 x 2.68 x 2.28 inches
- Exterior Finish : Stainless Steel,Steel
- Inlet Connection Size : 1/4 inches
- Inlet Connection Type : National Pipe Tapered
- Outlet Connection Type : NPT
- Maximum Operating Pressure : 1000 kilopascal
- Number of Ports : 2
- Outlet Connection Size : 0.25 inches
