U.S. Solid 3/4 inch Motorized Ball Valve 9-24V DC Brass Electric Valve Normally Closed 5-Wire Standard Port with Visual Position Indicator IP65
U.S. Solid 3/4 inch Motorized Ball Valve 9-24V DC Brass Electric Valve Normally Closed 5-Wire Standard Port with Visual Position Indicator IP65
Ball Valves
Product details
About This

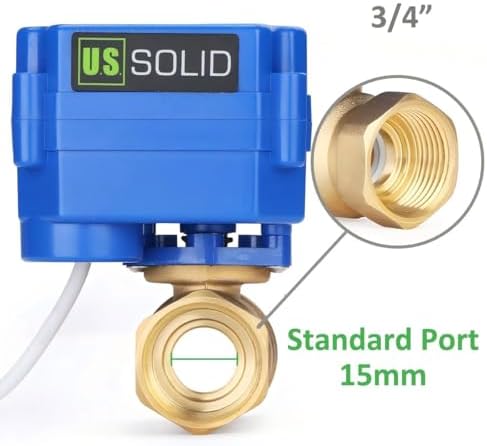

- STANDARD PORT NPT FLOW CONTROL: This 3/4 inch NPT brass motorized valve uses a standard-port, reduced-bore design for controlled, reliable flow in a compact body; suitable for home irrigation, RV plumbing, home brewing, and HVAC fluid lines
- Built-In Visual Position Indicator: A high-visibility window on top of the actuator shows open or closed status at a glance, eliminating the need for external sensors in automation panels, smart home systems, or industrial PLC setups.

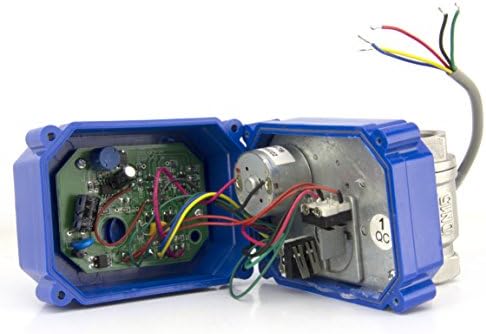

- Auto Power Cut-Off via Limit Switch: Built-in limit switches cut power once the valve reaches full open or closed position, preventing overheating and reducing energy draw — opening or closing fully in 6 to 8 seconds at 5W max power.
- Rated IP65 and 80,000-Cycle Lifespan: Brass valve body with PTFE ball seat and EPDM seals handles media from 0 to 100 degrees C and up to 1.0 MPa pressure. IP65 enclosure resists dust ingress and water spray from all directions.
- Normally Closed Fail-Safe and 5-Wire Interface: Valve defaults to closed when unpowered for leak prevention and automated shut-off safety. The 5-wire control interface supports 9-24V DC systems including Arduino, PLC, and home automation controllers.
Overview
- Material : Brass
- Brand : U.S. Solid
- Exterior Finish : Brass
- Inlet Connection Size : 3/4 inches
- Inlet Connection Type : National Pipe Tapered
- Outlet Connection Type : NPT
- Maximum Operating Pressure : 1000 kilopascal
- Number of Ports : 2
- Outlet Connection Size : 3/4 inches
- Specification Met : IP65
