U.S. Solid 1/4 in Motorized Ball Valve NSF Certified 304 Stainless Steel Normally Closed 9-24V DC 5-Wire Full Port IP65 Electric Actuated Valve
U.S. Solid 1/4 in Motorized Ball Valve NSF Certified 304 Stainless Steel Normally Closed 9-24V DC 5-Wire Full Port IP65 Electric Actuated Valve
Ball Valves
Product details
About This
- NSF Certified 304 Stainless Steel Body: Valve body and stem are made from NSF-certified SS304, a lead-free alloy rated safe for potable water, home brewing, hydroponics, and aquaponics — ensuring no contamination risk in food-contact or drinking water applications.
- Fail-Safe Normally Closed Operation: This N.C. electric ball valve stays shut when unpowered, making it a reliable automatic shut-off for leak prevention, emergency water control, and irrigation systems where flow must stop during power loss.

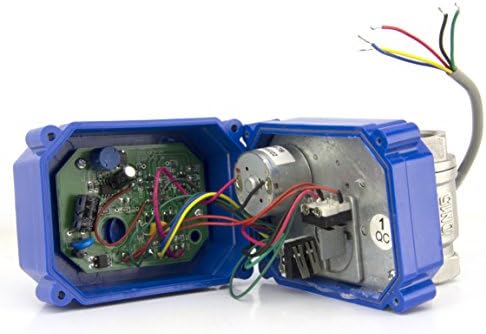

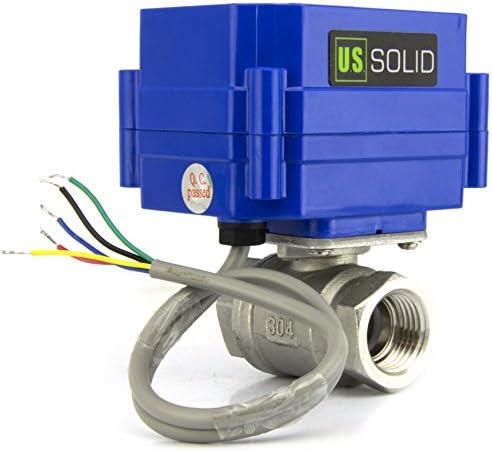

- 5-Wire Control with Auto Power Cutoff: The 5-wire interface supports 9-24V DC systems and includes a built-in internal limit switch that cuts power once the valve reaches fully open or closed position, preventing overheating — unlike continuously energized solenoid valves.

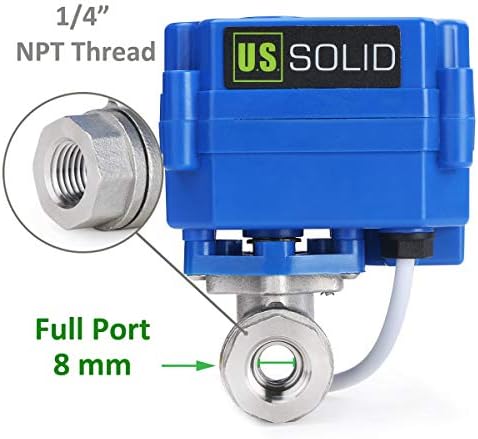

- 1/4 in NPT Full Port Design with IP65 Enclosure: Full port bore matches pipe diameter for maximum flow with minimal pressure drop. IP65-rated actuator casing resists dust ingress and water spray from all directions, suitable for outdoor and damp environments.
- Specs and Compatibility: Valve opens or closes in 6-8 seconds. Max pressure 1.0 MPa, max torque 6 N·m, max power 5W, flow medium temperature 0-100 degrees C, cycle lifespan 80,000-100,000. Ball seat: PTFE. Seal: EPDM. Compatible with Arduino and PLC automation.
Overview
- Material : Stainless Steel
- Brand : U.S. Solid
- Exterior Finish : Stainless Steel,Steel
- Inlet Connection Size : 1/4 inches
- Inlet Connection Type : Full port
- Outlet Connection Type : FNPT
- Maximum Operating Pressure : 100 bar
- Number of Ports : 5
- Outlet Connection Size : 0.25 inches
- Specification Met : nsf certification
