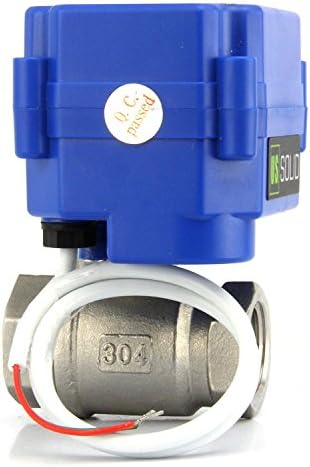

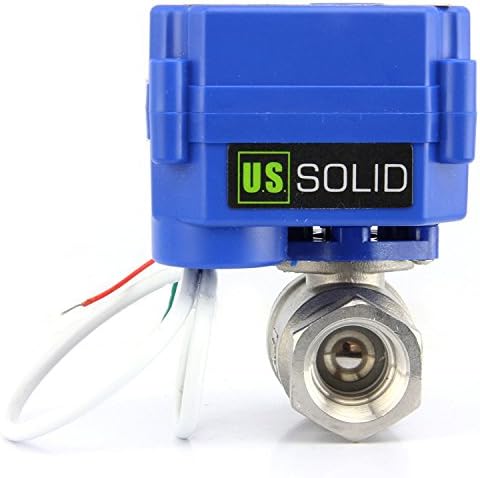

Motorized Ball Valve 1/2 in U.S. Solid 304 Stainless Steel NSF Certified 85-265V AC 2 Wire Auto Return Normally Closed Electric Actuated NPT
Motorized Ball Valve 1/2 in U.S. Solid 304 Stainless Steel NSF Certified 85-265V AC 2 Wire Auto Return Normally Closed Electric Actuated NPT
Ball Valves
Product details
About This
- NSF CERTIFIED 304 STAINLESS STEEL: The metal components are NSF Certified 304 stainless steel that resists corrosion and is safe for drinking water; a lead-free path for potable water and general fluid lines
- WIDE AC 85-265 V ACTUATION: Runs directly on AC 85 to 265 V at 5 W and drives the ball fully open or closed in 6 to 8 seconds with 6 Nm of torque for firm, automatic on/off control

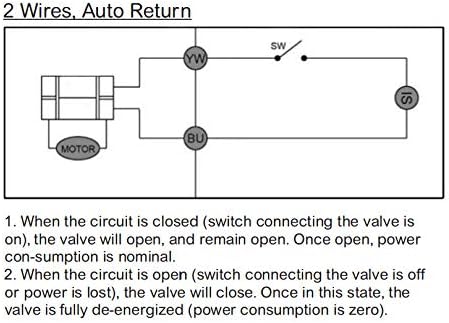

- AUTOMATED SAFETY SHUT-OFF: A 2-wire auto-return design opens the valve when energized and automatically returns it to the fully closed position if main power is lost, shutting off the line for leak prevention and emergency isolation
- LOW-POWER SOLENOID ALTERNATIVE: Once fully open, an internal limit switch cuts the drive motor, so the valve draws only minimal maintenance current with little heat, unlike a continuously energized solenoid coil that stays hot and power-hungry

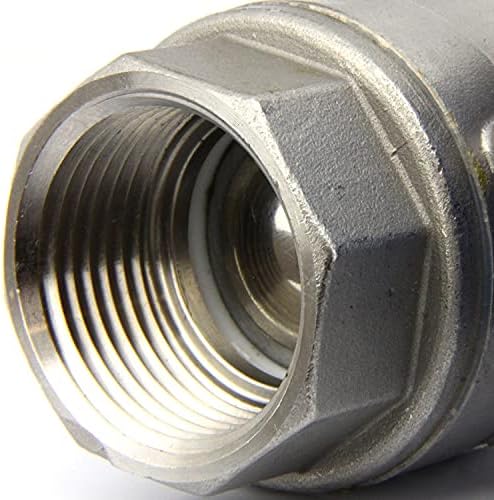

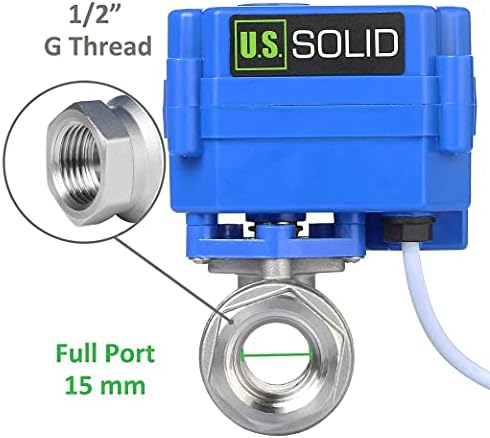

- FULL PORT WITH IP65 DURABILITY: The compact 1/2 in NPT full-port 15 mm bore gives unrestricted flow with minimal pressure drop; the IP65 actuator with PTFE and silicone seats is rated for 80,000 to 100,000 cycles
Overview
- Material : Stainless Steel
- Brand : U.S. Solid

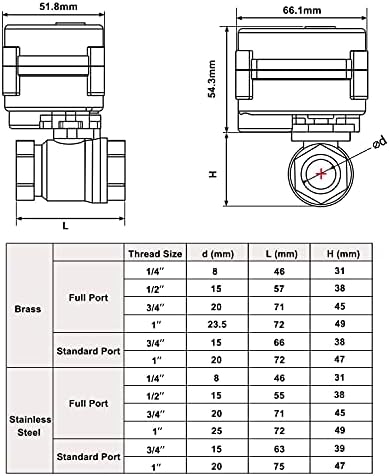

- Item dimensions L x W x H : 3.62 x 2.68 x 2.4 inches
- Exterior Finish : Stainless Steel
- Inlet Connection Size : 0.5 inches
- Inlet Connection Type : National Pipe Tapered
- Outlet Connection Type : NPT
- Number of Ports : 2
- Outlet Connection Size : 0.5 inches
- Specification Met : ip
