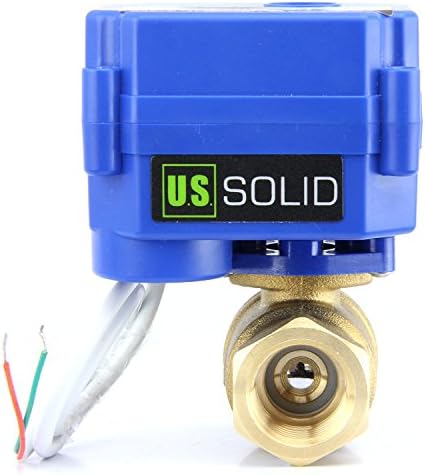

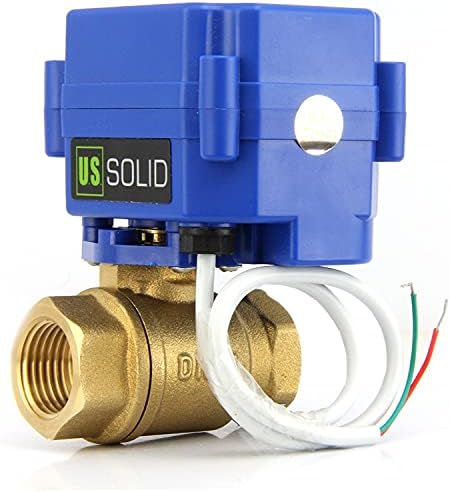

U.S. Solid 1" Motorized Ball Valve 85-265V AC Brass Electrical Ball Valve, 2 Wire Auto Return Setup Normally Closed
U.S. Solid 1" Motorized Ball Valve 85-265V AC Brass Electrical Ball Valve, 2 Wire Auto Return Setup Normally Closed
Ball Valves
Product details
About This

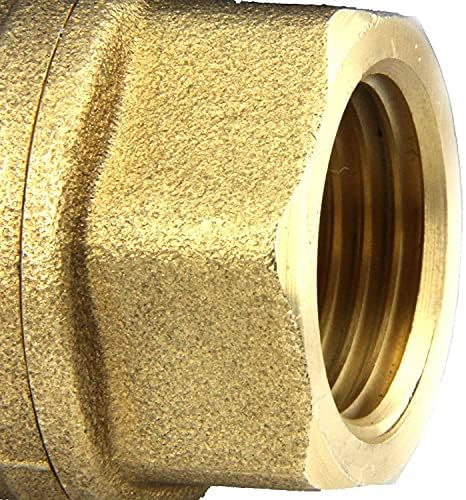

- DURABLE BRASS FULL PORT BODY: Premium forged brass valve uses a full-port 25 mm bore matching pipe diameter for maximum flow with minimal pressure drop; ideal for water, air, oil, and gas lines in residential or light commercial setups
- WIDE AC 85-265 V OPERATION: Drives fully open or closed in 6 to 8 seconds with 6 Nm of torque using a wide-range AC 85-265 V power supply; delivers a firm, reliable seal without requiring low-voltage transformers

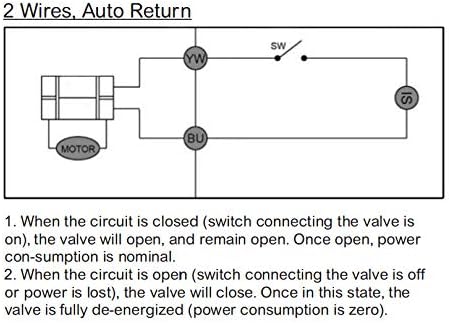

- AUTOMATED SAFETY SHUT-OFF: Simple 2-wire auto-return setup opens the valve when energized and automatically returns to the fully closed position during power loss for leak prevention and emergency automated line isolation
- LOW-POWER SOLENOID ALTERNATIVE: Once fully open, an internal limit switch cuts the drive motor to draw only minimal maintenance current with little heat, unlike continuously energized solenoid coils that stay hot and burn out
- IP65 RATED DURABILITY: Enclosure seals against dust and water spray from all directions; PTFE and silicone seats handle up to 1.0 MPa (145 psi) for a rated 80,000 to 100,000 cycle service life in irrigation, HVAC, and plumbing
Overview
- Material : Stainless Steel
- Brand : U.S. Solid

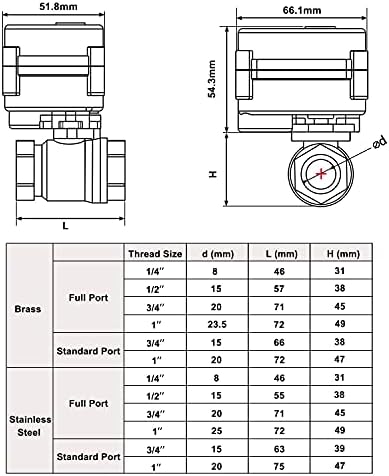

- Item dimensions L x W x H : 4.13 x 3.23 x 2.91 inches
- Exterior Finish : Brass
- Inlet Connection Size : 1 inches
- Inlet Connection Type : National Pipe Tapered
- Outlet Connection Type : NPT
- Maximum Operating Pressure : 1000 kilopascal
- Number of Ports : 2
- Outlet Connection Size : 1 inches
