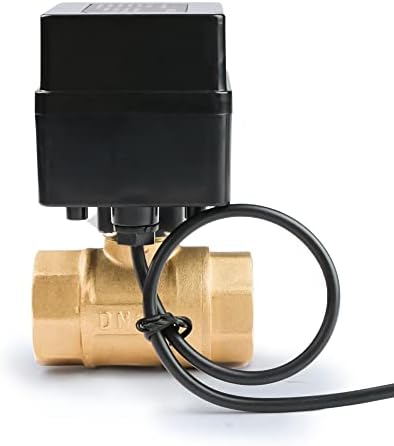

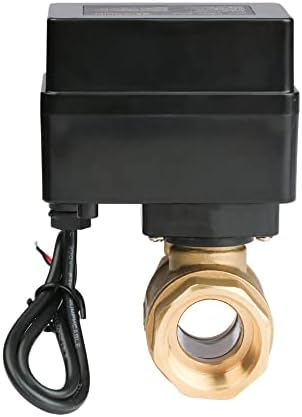

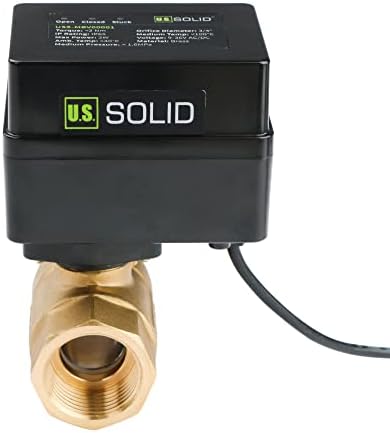

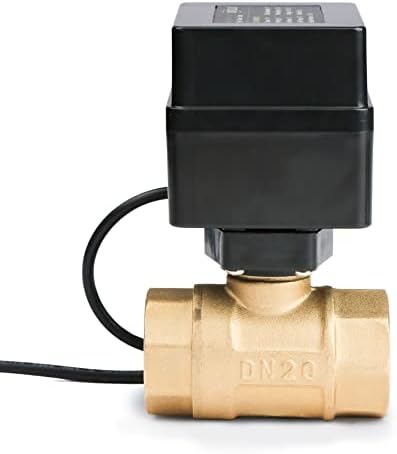

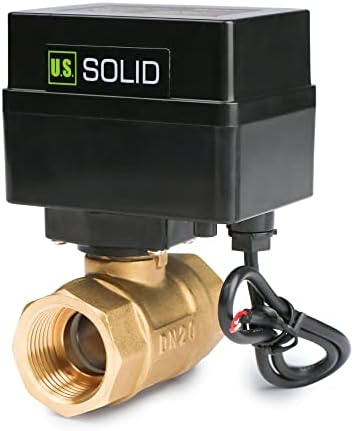

U.S. Solid Motorized Ball Valve- 3/4" Brass Ball Valve with Full Port, 9-36V AC/DC, 2 Wire Auto Return Setup, Normally Open (N/O)
U.S. Solid Motorized Ball Valve- 3/4" Brass Ball Valve with Full Port, 9-36V AC/DC, 2 Wire Auto Return Setup, Normally Open (N/O)
Ball Valves
Product details
About This
- FULL PORT BRASS BALL VALVE: The 3/4 in NPT full-port bore matches the pipe diameter for full, unrestricted flow and minimal pressure drop when open; motorized on/off shut-off replaces solenoid valves in water, oil, gas, and air lines

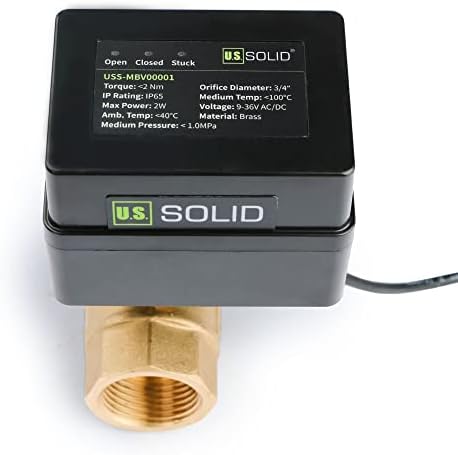

- THREE-LIGHT POSITION INDICATOR: Built-in open, closed, and stuck indicator lights show valve position on the unit at a glance for local open/closed status; the signal reports on/off position only and does not monitor or regulate flow
- 2-WIRE AUTO RETURN: A 2-wire connection carries power only and returns the valve to its fully open rest position when power is removed; the motor de-energizes once the valve reaches position, which simplifies wiring for automatic systems
- NORMALLY OPEN 9-36 V DESIGN: This normally open valve keeps the passage open until powered to close, so flow continues if control power is lost; the wide 9-36 V AC/DC range and 5 W draw suit both AC and DC control panels
- BRASS BODY FOR WATER AND HVAC: The brass body with PTFE seat and EPDM seal handles 1.0 MPa at media temperatures of 0 to 90 °C; opens or closes in 6-8 seconds with a service life of 80000 to 100000 cycles for irrigation and water treatment
Overview
- Material : Brass
- Brand : U.S. Solid
- Item dimensions L x W x H : 4.33 x 3.55 x 3.55 inches
- Exterior Finish : Brass
- Inlet Connection Size : 0.75 inches
- Inlet Connection Type : National Pipe Tapered
- Outlet Connection Type : FNPT
- Number of Ports : 2
- Outlet Connection Size : 0.75 inches
- Specification Met : IP65, RoHS
