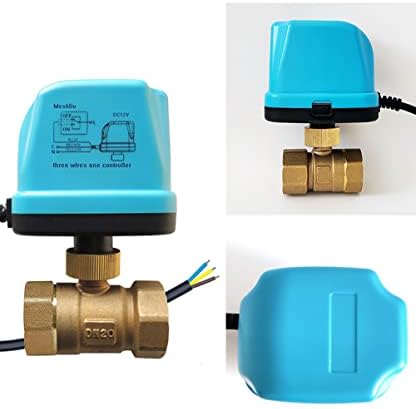

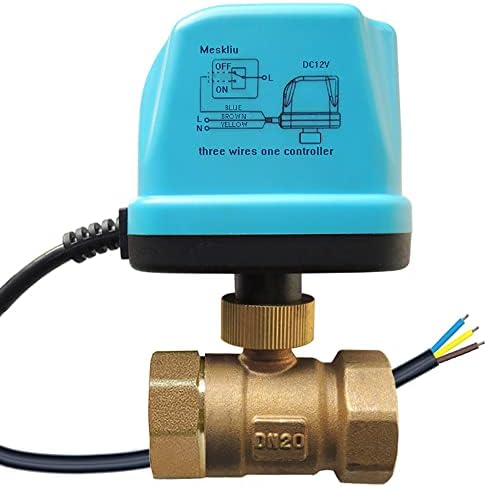

Motorized Ball Valve,3/4" DN20 Brass Electrical Ball Valve,DC12V/24V 3 Wire Water Valve with Standard Port (Normally Closed)
Motorized Ball Valve,3/4" DN20 Brass Electrical Ball Valve,DC12V/24V 3 Wire Water Valve with Standard Port (Normally Closed)
Ball Valves
Product details
About This
- This motorized ball valve comes with two wires. It is most easily used by wiring directly to a power source or simple on off switch. Because this is an auto-return valve, simply shutting off the power will close the valve.
- Made of durable brass, this valve is safe and reliable; The estimated life expectancy of 80,000 to 100,000 cycles means it is built to last.
- Works effectively over entire voltage range:12V-24V DC ; Will open or close valve in 3-5s.Automatically cuts off power once fully open or fully closed.(No power expended once fully open or fully closed.)

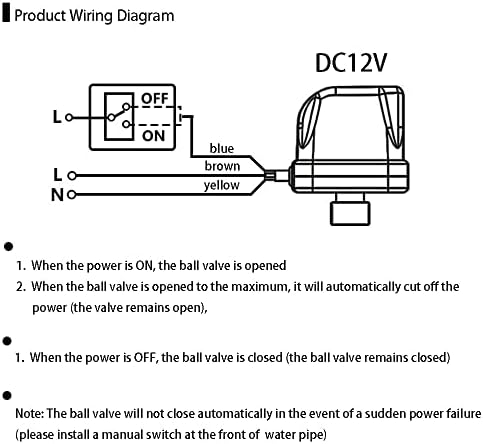

- 3 WIRE, 2 POINT CONTROL SETUP- Simple three wire connection, with two points of control; No energy expended once in position.

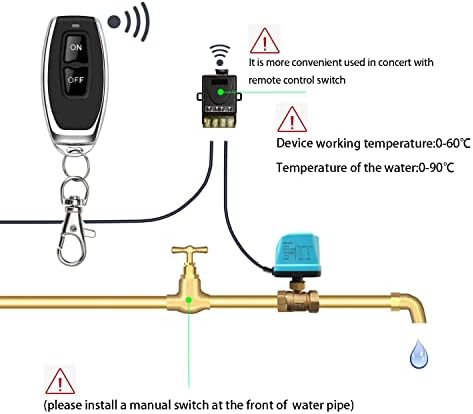

- It will not automatically shut off in the event of a sudden power failure, we recommend installing a manual switch in front of the electric valve.

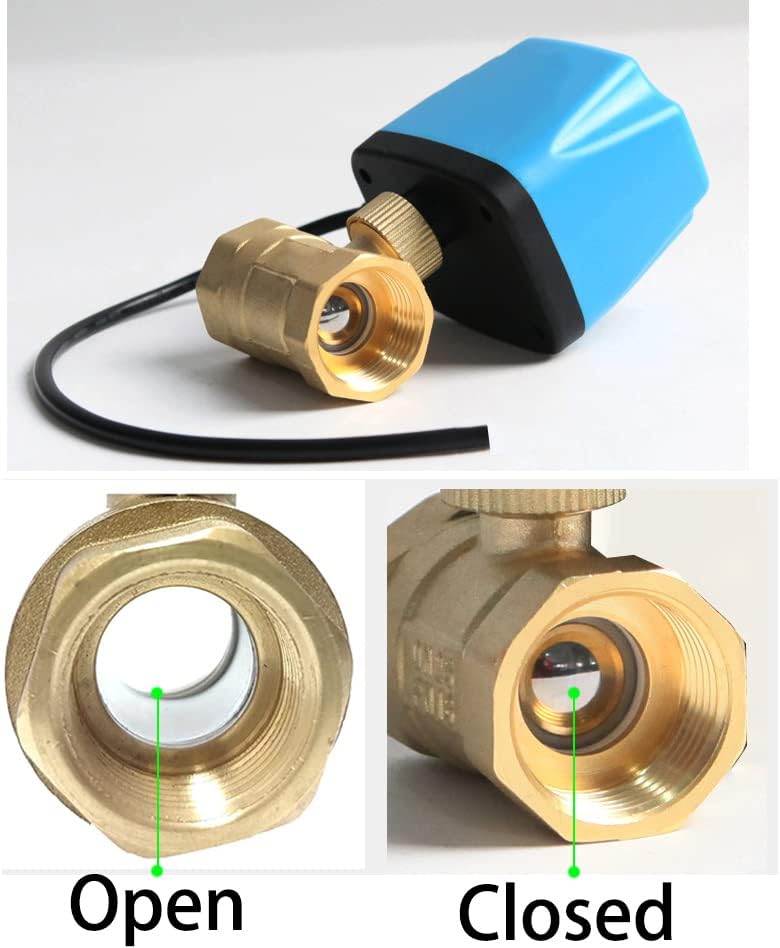

- NPT THREADING-3/4” Brass threading-- This electrical ball valve is standard port, meaning the bore in the ball is a little less than 3/4”; This minimizes pressure loss through the valve; Perfect for home automation projects.
Overview
- Material : Brass
- Brand : Meskliu
- Exterior Finish : Brass
- Inlet Connection Type : National Pipe Tapered
- Outlet Connection Type : National Pipe Tapered
- Maximum Operating Pressure : 1600000 pascal
- Number of Ports : 2
- Outlet Connection Size : 0.75 inches
- Specification Met : energy
- Unit Count : 1 Count
