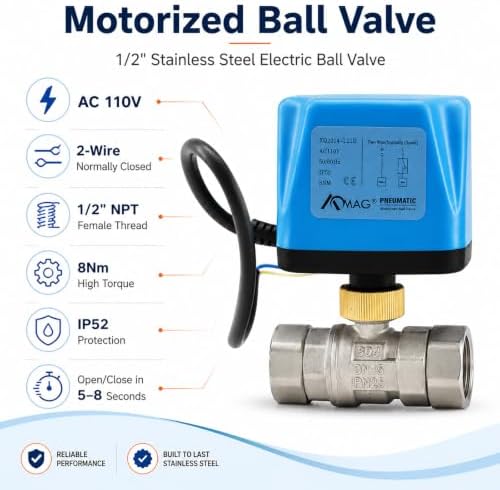

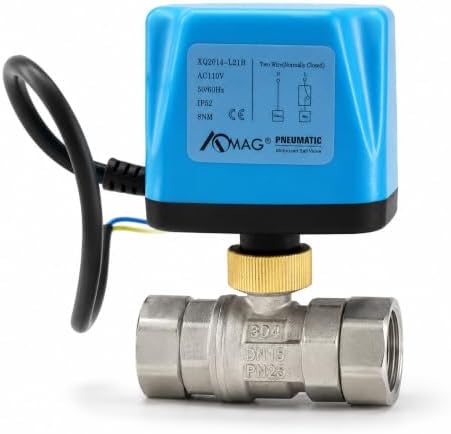

Motorized Ball Valve - 1/2" Stainless Steel Electric Ball Valve AC 110V NPT 2 Wires Normally Closed
Motorized Ball Valve - 1/2" Stainless Steel Electric Ball Valve AC 110V NPT 2 Wires Normally Closed
Ball Valves
Product details
About This

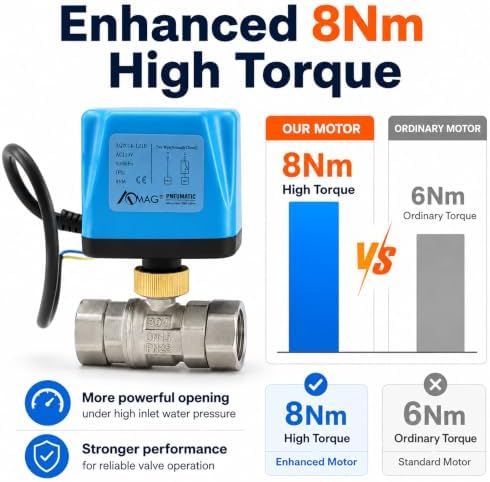

- 【Better Performance】The core of the electric ball valve is the maximum torque. Its maximum torque reaches an astonishing 8NM, which is much better than the 6nm 2nm.

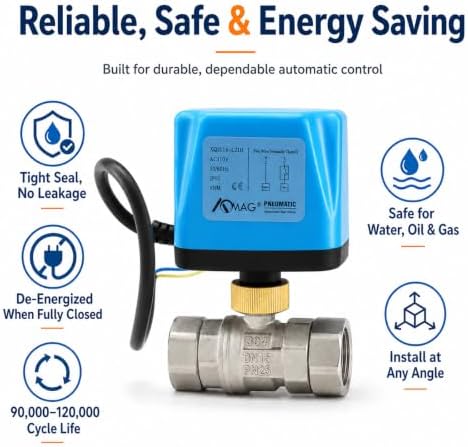

- 【Reliable & Safe】 - Made of high quality brass this valve is safe and durable ; Built-in actuator de-energize the valve when it is closed, safe and energy-saving.Accurate structure, tight close, no leakage. Lifespan of 90,000-120,000 cycles means a valve that will last. safe and energy-saving, accurate structure, tight close, no leakage.

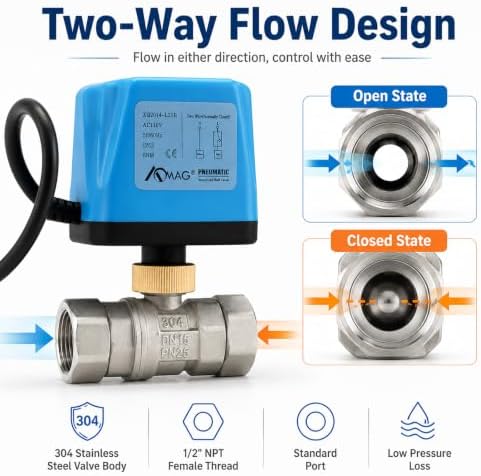

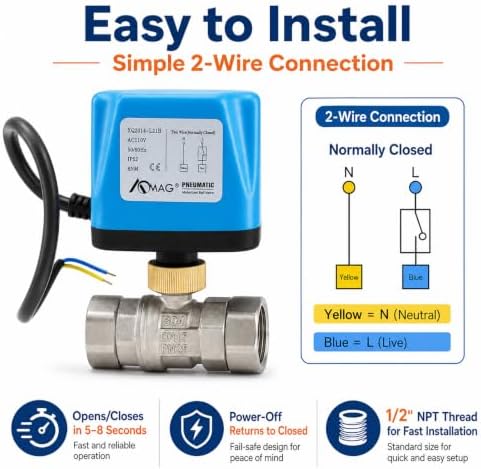

- 【Easy to Install】- Float ball design, no leak, large flow, the valve is bi-directional ball valve. The motorized ball valve occupies little external space and can be installed on the wall. Simple two wire connection, valve largely de-energizes after opening; Returns to fully closed if power is removed.
- 【Widely Applicable】- Lead Free, Safe for Drink Water and Food. Suitable For Water, Oil, Gas. Mainly used for the fan coil and water control system of air conditioner.
- 【AC 110-220V】- Works effectively over entire voltage range; Will open or close valve in 5-8 seconds; Limit switch minimizes power after valve is fully open; Ideal for projects where an automatic return is necessary
- 【NPT Thread】- 1/2 Brass threading, manufactured and measured according to National Pipe Thread standards; This electrical ball valve is standard port, meaning the bore in the ball is a little less than 1/2”; This minimizes pressure loss through the valve; Perfect for home automation projects
- 【Nice Replacement of Solenoid Valves】This motorized valve is a good replacement of the solenoid valve.It can be installed at any angle.
Overview
- Material : Brass, Stainless Steel
- Brand : AOMAG
- Item dimensions L x W x H : 4.8 x 3.2 x 2.49 inches
- Exterior Finish : Stainless Steel
- Inlet Connection Size : 0.5 inches
- Inlet Connection Type : National Pipe Tapered
- Outlet Connection Type : MNPT
- Number of Ports : 2
- Outlet Connection Size : 0.5 inches
- Specification Met : CE, RoHS
