U.S. Solid Motorized Ball Valve- 3/4" Stainless Steel Ball Valve with Full Port, 9-36V AC/DC, 2 Wire Auto Return Setup, Normally Open (N/O)
U.S. Solid Motorized Ball Valve- 3/4" Stainless Steel Ball Valve with Full Port, 9-36V AC/DC, 2 Wire Auto Return Setup, Normally Open (N/O)
Ball Valves
Product details
About This

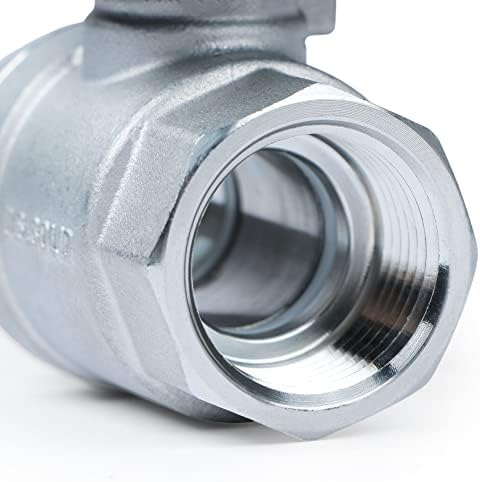

- FULL PORT STAINLESS STEEL VALVE: 3/4 in NPT motorized ball valve with a full-port 20 mm bore matching the pipe diameter for full, unrestricted flow and minimal pressure drop in water, air, gas, and oil lines
- 2-WIRE AUTO RETURN: A basic 2-wire connection carries power only for simple wiring; when control power is removed the valve returns to its fully open rest position, and re-energizing drives it closed on demand

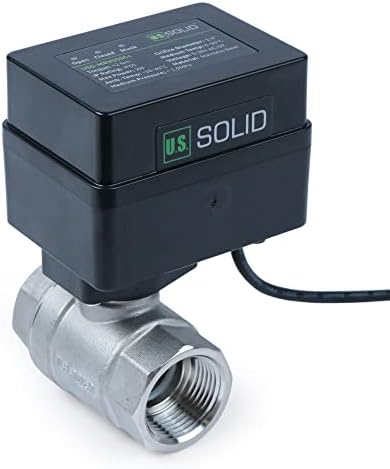

- THREE INDICATOR LIGHTS: Built-in open, closed, and stuck lights show the valve's open/closed position at a glance on the unit; they confirm position only and do not monitor or regulate flow
- NORMALLY OPEN DESIGN: The 2-wire auto return valve stays open to keep the passage clear during normal operation and closes on signal for reliable on/off shutoff control
- AUTOMATIC ELECTRIC SHUTOFF: 9-36 V AC/DC power, 5 W draw, and a PTFE seat close the valve in 6-8 seconds; a durable electric alternative to solenoid valves for home water systems, irrigation, and water treatment
Overview
- Material : Stainless Steel
- Brand : U.S. Solid
- Item dimensions L x W x H : 4.33 x 3.55 x 3.55 inches
- Exterior Finish : Stainless Steel
- Inlet Connection Type : National Pipe Tapered
- Outlet Connection Type : NPT
- Maximum Operating Pressure : 1000 pascal
- Number of Ports : 2
- Outlet Connection Size : 3/4 inches
- Specification Met : IP65, RoHS
