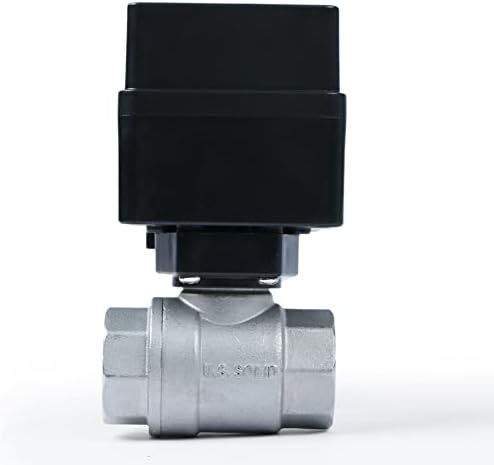

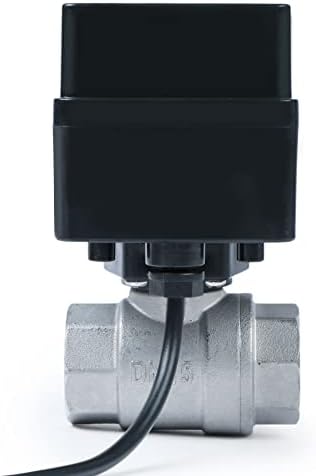

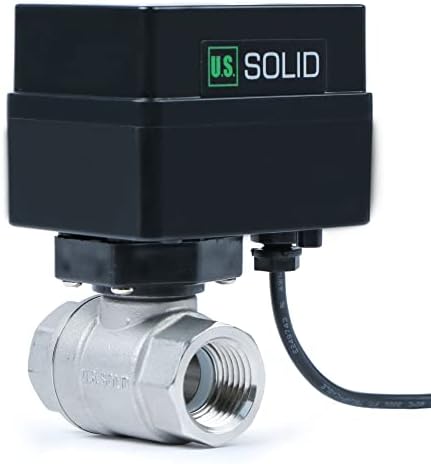

U.S. Solid Motorized Ball Valve- 1/2" Stainless Steel Ball Valve with Full Port, 9-36V AC/DC, 2 Wire Auto Return Setup, Normally Open (N/O)
U.S. Solid Motorized Ball Valve- 1/2" Stainless Steel Ball Valve with Full Port, 9-36V AC/DC, 2 Wire Auto Return Setup, Normally Open (N/O)
Ball Valves
Product details
About This

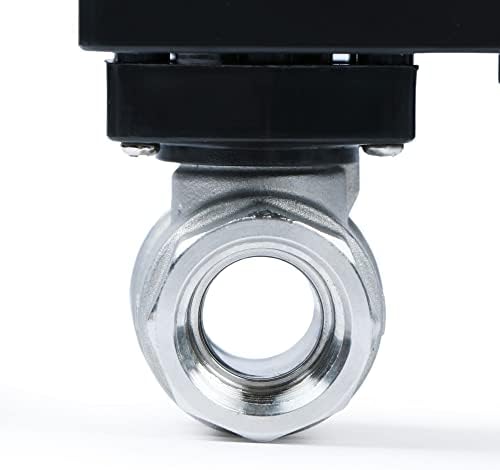

- FULL PORT FULL FLOW: This 1/2 inch stainless steel motorized ball valve uses a full-port bore with a 15 mm flow aperture for unrestricted flow and minimal pressure drop; a durable on/off shut-off for automated water, oil, gas, and air lines
- AUTO RETURN ON POWER LOSS: This normally open valve runs on a 2-wire power connection; when control power is removed, it returns to its fully open rest position and keeps the line flowing without a manual reset
- WIDE 9-36 V AC/DC RANGE: Runs on 9-36 V AC/DC for flexible wiring across 12 V and 24 V systems; draws only 5 W and delivers 2 Nm of torque, cycling open or closed in 6-8 seconds for responsive automation
- NORMALLY OPEN WITH STATUS LIGHTS: Built-in open, closed, and stuck indicator lights show valve position on the unit for at-a-glance status; the lights report position only and do not monitor or regulate flow, since this ball valve is on/off
- STAINLESS BUILD FOR TOUGH LINES: PTFE seat and stainless steel body with 1.0 MPa working pressure handle media from 0 to 90 °C; a heavy-duty alternative to solenoid valves for irrigation, water treatment, filtration, and HVAC
Overview
- Material : Stainless Steel
- Brand : U.S. Solid
- Item dimensions L x W x H : 4.33 x 3.55 x 3.55 inches
- Exterior Finish : Stainless Steel
- Inlet Connection Size : 0.5 inches
- Inlet Connection Type : National Pipe Tapered
- Outlet Connection Type : NPT
- Maximum Operating Pressure : 10 bar
- Number of Ports : 2
- Outlet Connection Size : 0.5 inches
