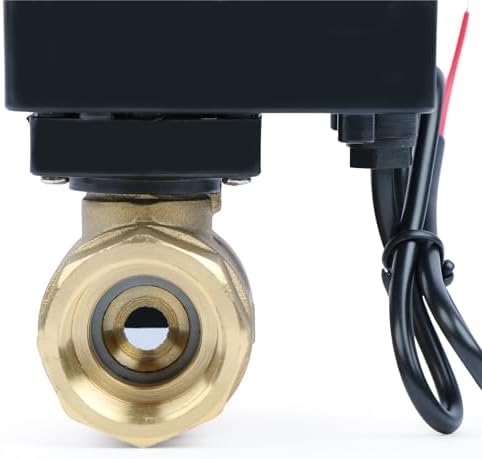

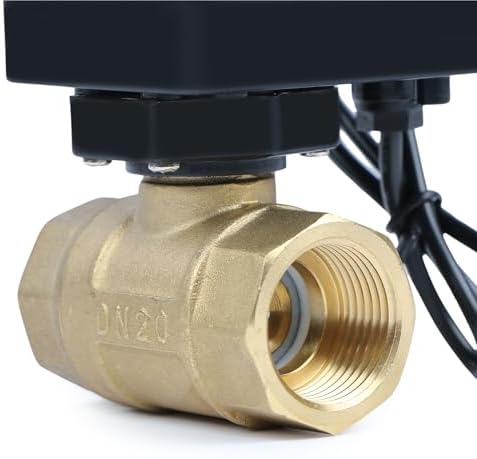

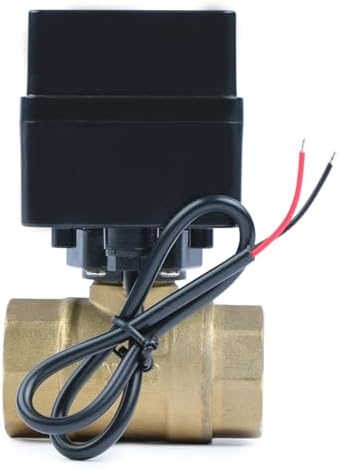

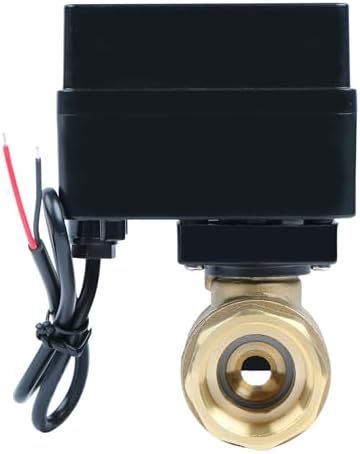

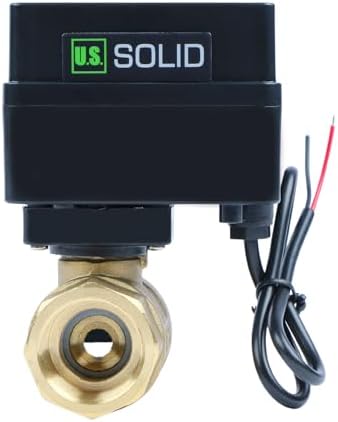

U.S. Solid Motorized Ball Valve- 3/4" Brass Ball Valve with Full Port, 9-36V AC/DC, 2 Wire Auto Return Setup, Normally Closed (N/C)
U.S. Solid Motorized Ball Valve- 3/4" Brass Ball Valve with Full Port, 9-36V AC/DC, 2 Wire Auto Return Setup, Normally Closed (N/C)
Ball Valves
Product details
About This
- FULL PORT UNRESTRICTED FLOW: 3/4 in NPT brass motorized ball valve with a full-port 20 mm bore matching the pipe for full flow and minimal pressure drop; on/off electric shutoff for water, oil, gas, and air lines
- 2-WIRE AUTO RETURN: A simple 2-wire power connection lets the valve de-energize after closing to reduce heat; if control power is removed the valve returns to its fully closed rest position without a separate reset
- NORMALLY CLOSED DESIGN: Keeps the passage closed until energized, suitable for holding a line shut for long periods; opens fully in 6-8 seconds and cuts power once fully open or fully closed to limit overheating

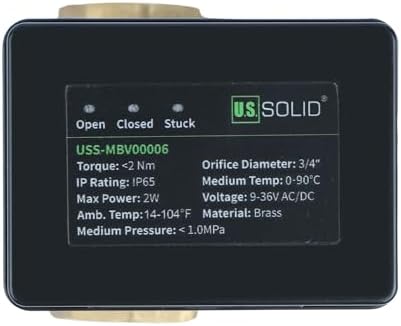

- THREE STATUS LIGHTS: Built-in open, closed, and stuck indicator lights on the unit show valve position at a glance for local open/closed status confirmation, reporting position only and not flow; wide 9-36 V AC/DC range for wiring
- DURABLE BRASS BUILD: Brass body with a PTFE ball seat rated to 1.0 MPa and a service life of 80000 to 100000 cycles; a lower-power alternative to solenoid valves at 5 W with 2 Nm torque, suitable for irrigation and HVAC
Overview
- Material : Brass
- Brand : U.S. Solid
- Item dimensions L x W x H : 4.33 x 3.55 x 3.55 inches
- Exterior Finish : Brass
- Inlet Connection Size : 0.75 inches
- Inlet Connection Type : National Pipe Tapered
- Outlet Connection Type : FNPT
- Maximum Operating Pressure : 1000 kilopascal
- Number of Ports : 2
- Outlet Connection Size : 0.75 inches
