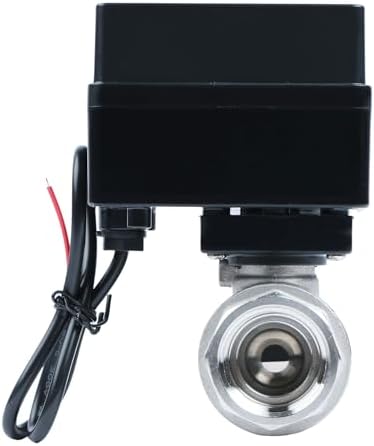

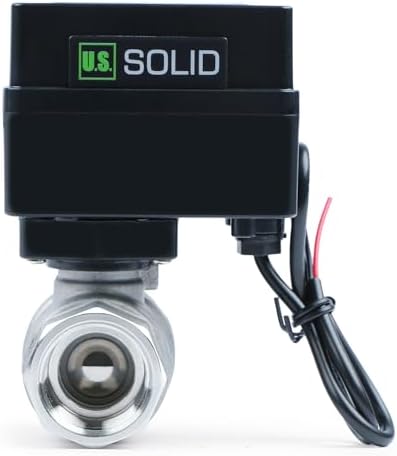

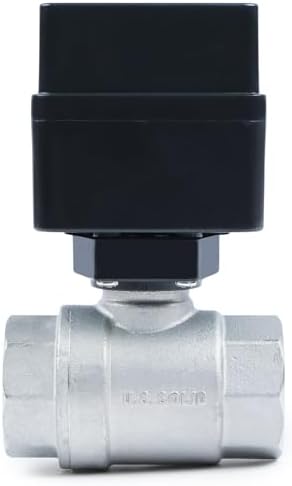

U.S. Solid Motorized Ball Valve- 3/4" Stainless Steel Ball Valve with Full Port, 9-36V AC/DC, 2 Wire Auto Return Setup, Normally Closed (N/C)
U.S. Solid Motorized Ball Valve- 3/4" Stainless Steel Ball Valve with Full Port, 9-36V AC/DC, 2 Wire Auto Return Setup, Normally Closed (N/C)
Ball Valves
Product details
About This

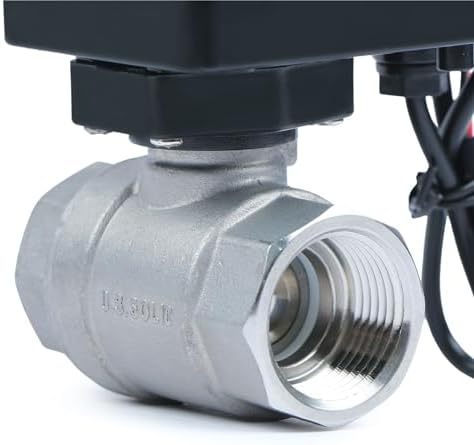

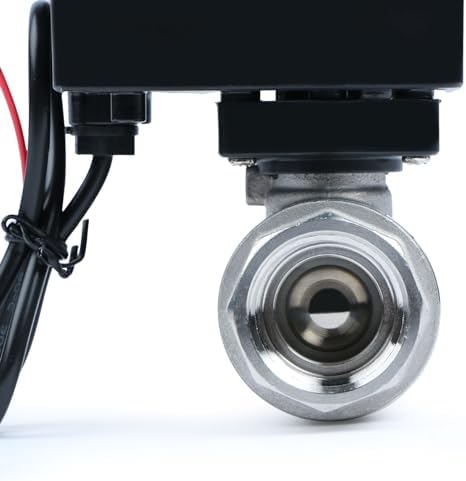

- FULL PORT STAINLESS STEEL: 3/4 in full-port bore with a 20 mm flow aperture matches the pipe diameter for full, unrestricted flow and minimal pressure drop; corrosion-resistant stainless steel body suits water, air, gas, and oil lines
- NORMALLY CLOSED AUTO RETURN: 2-wire wiring keeps the passage closed by default and returns the valve to the fully closed position when power is removed; the motor largely de-energizes after each cycle to reduce heat and power draw

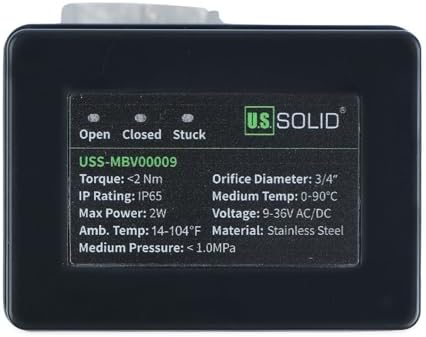

- THREE STATUS LIGHTS: Built-in indicator lights on the unit confirm open, closed, or stuck valve position at a glance for reliable on/off status confirmation; the electric actuator gives clean 2-way shut-off without monitoring or regulating flow
- WIDE 9-36 V AC/DC: Runs across a 9-36 V AC/DC supply for flexible wiring; draws up to 5 W and opens or closes in 6-8 seconds with 2 Nm of torque for dependable automated actuation
- SOLENOID VALVE ALTERNATIVE: Rated to 80,000 to 100,000 cycles with a PTFE ball seat; a durable 3/4 NPT choice for home water systems, water treatment, irrigation, and water filter setups
Overview
- Material : Stainless Steel
- Brand : U.S. Solid
- Item dimensions L x W x H : 4.33 x 3.55 x 3.55 inches
- Exterior Finish : Stainless Steel
- Inlet Connection Size : 1 inches
- Inlet Connection Type : National Pipe Tapered
- Outlet Connection Type : NPT
- Maximum Operating Pressure : 1000 kilopascal
- Number of Ports : 2
- Outlet Connection Size : 0.75 inches
