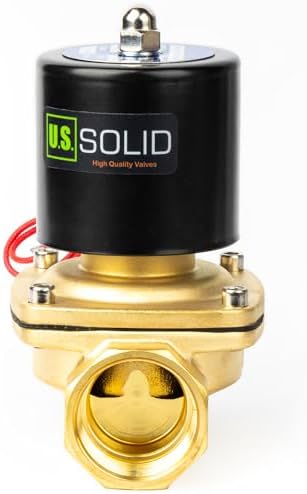

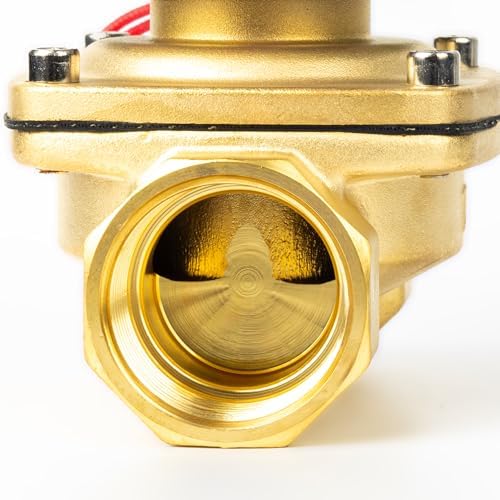

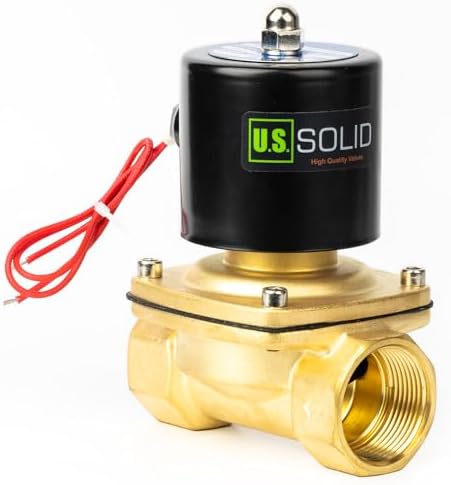

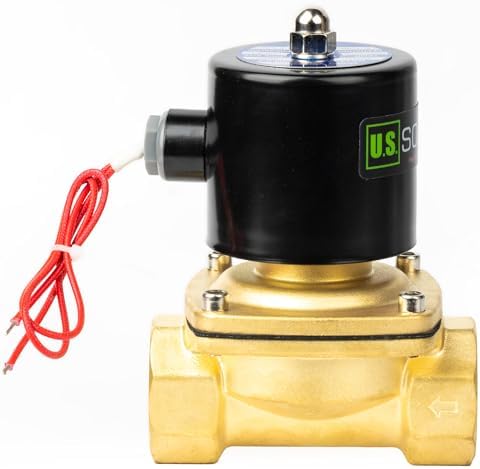

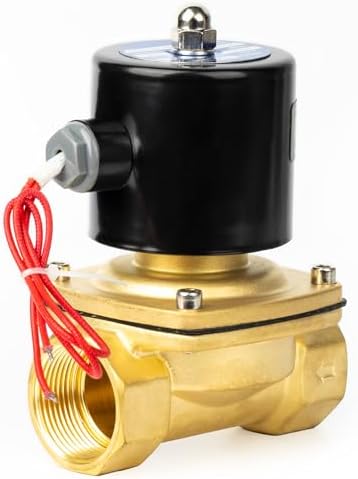

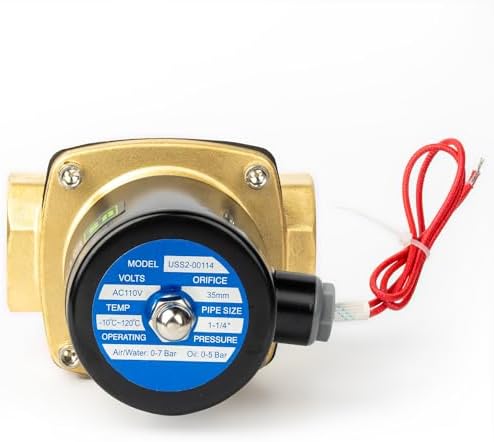

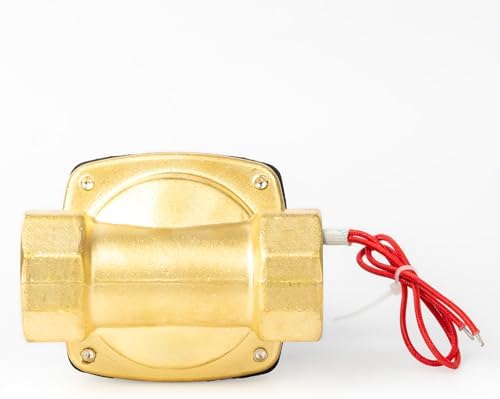

U.S. Solid 1-1/4 in Brass Electric Solenoid Valve, AC 110 V, Normally Closed, FKM Seal, 24 Cv, Semi-Direct, for Air Gas Fuel and Oil
U.S. Solid 1-1/4 in Brass Electric Solenoid Valve, AC 110 V, Normally Closed, FKM Seal, 24 Cv, Semi-Direct, for Air Gas Fuel and Oil
Solenoid Valves
Product details
About This
- FAST RESPONSE, OPENS FROM 0 BAR: A semi-direct design opens from 0 bar with no minimum pressure differential and switches open or closed in under 1 second when energized or de-energized, rated for over 1 million cycles
- INDUSTRIAL BRASS, FOR FUEL GAS AND OIL: A corrosion-resistant brass body suits gasoline, diesel, kerosene, natural gas, air, and oils; because brass contains lead, do not use it for drinking water
- FKM SEAL FOR HEAT AND FUEL: The FKM (fluoroelastomer) seal resists high temperatures and corrosive chemicals, fuels, oils, and lubricants over -10 to 120 °C (14 to 248 °F) where NBR or EPDM seals would swell
- NORMALLY CLOSED, NOT CONTINUOUS DUTY: An internal spring holds it closed with no power; energize the AC 110 V coil (27.5 VA) to open. Not a continuous-duty valve, so limit energizing to 8 hours per cycle to protect the coil
- FOR IRRIGATION, RO, AND MORE: Controls flow for fuel and gas handling, irrigation, reverse osmosis, home brewing, and DIY projects, passing 24 Cv through a 35 mm orifice, rated IP65
Overview
- Material : Brass
- Brand : U.S. Solid
- Item dimensions L x W x H : 7.9 x 6.9 x 5 inches
- Exterior Finish : Brass
- Inlet Connection Size : 1.25 inches
- Inlet Connection Type : FNPT
- Outlet Connection Type : FNPT
- Maximum Operating Pressure : 101 psi
- Number of Ports : 2
- Outlet Connection Size : 1.25 inches
