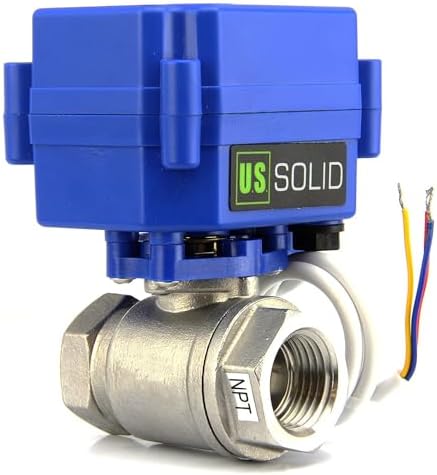

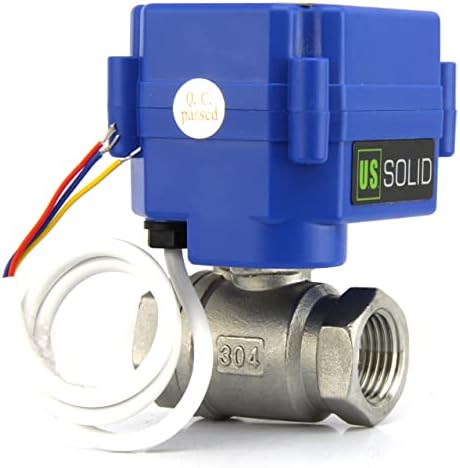

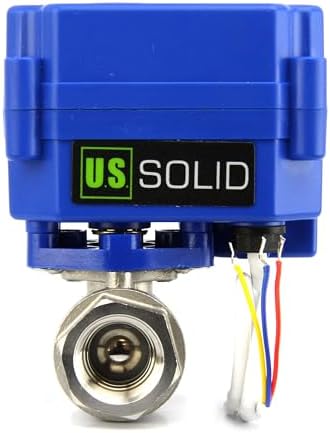

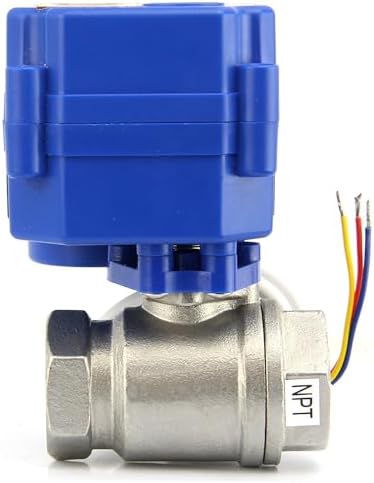

U.S. Solid 1/2"NPT NSF Certified 304SS 304 Motorized Ball Valve, Full Port, 9-24V AC/DC, 3-Wire Latching (Self-Hold) Control
U.S. Solid 1/2"NPT NSF Certified 304SS 304 Motorized Ball Valve, Full Port, 9-24V AC/DC, 3-Wire Latching (Self-Hold) Control
Ball Valves
Product details
About This
- Voltage Flexibility: The Motorized Electrical Ball Valve by U.S. Solid operates within a wide voltage range of 9V-24V AC/DC, accommodating various power supply conditions
- 3-Wire 1-Point-Control with Positive Break: The 3-wire 1-point-control system simplifies installation and ensures precise operation, allowing for easy integration with controllers, timers, or sensors. The positive break setup guarantees a reliable seal
- Quick Operation: The valve boasts a swift open/close time of less than 8 seconds, ensuring rapid response and control over fluid flow
- Temperature tolerance range: Handles internal fluid flow temperatures ranging from 0 to 90 C; operates reliably within ambient environmental conditions from 5 to 40 C; supports hot or cold water media across diverse industrial pipelines
- High Durability and Safety: With an IP65 rating, the valve is dust-tight and protected against water jets, ensuring longevity and safe operation. It also withstands a maximum pressure of 1.0 MPa, demonstrating its robustness in high-pressure scenarios
Overview
- Material : Stainless Steel
- Brand : U.S. Solid
- Item dimensions L x W x H : 4.5 x 3.5 x 3.5 inches
- Exterior Finish : Stainless Steel
- Inlet Connection Size : 1/2 inches
- Inlet Connection Type : National Pipe Tapered
- Outlet Connection Type : NPT
- Maximum Operating Pressure : 1000 kilopascal
- Number of Ports : 2
- Outlet Connection Size : 0.5 inches
