Fuel Hose Reel 1" x 33Ft, Retractable Ratchet Reel with Fueling Nozzle
Fuel Hose Reel 1" x 33Ft, Retractable Ratchet Reel with Fueling Nozzle
Product details
About This

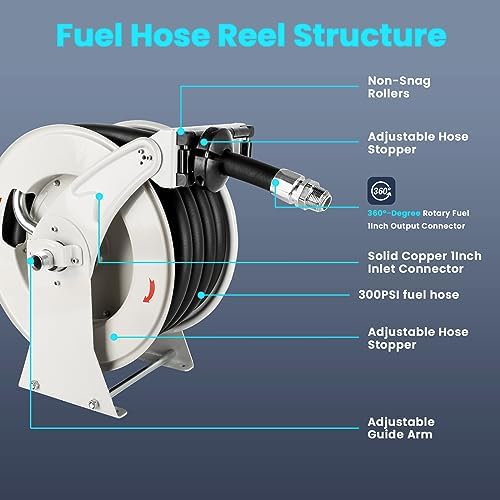

- Auto-Retractable Rewind: The fuel hose reel featured a retractable ratchet spring return system housed inside its structure. During hose extension, the valve body and disc rotate clockwise, enabling the hose to be pulled out and then fixed in place under the ratchet's lock. Once refueling is complete, a slight tug on the hose is all it takes for the hose reel to retract in a counterclockwise direction, and to stop at the adjustable hose stopper.

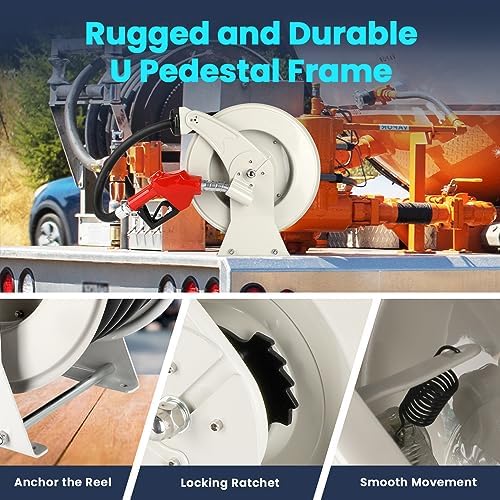

- Sturdy Hose Reel Holder: The diesel hose reel holder boasts a heavy-gauge industrial steel construction, and features reinforced flanged edges on both sides of the discs. Heat-treated with powder coating, to ensure the reel frame with outstanding durability and corrosion resistance, at the same time, make it suitable for challenging job site environments. With four reinforced drilled holes fitted on the base to enhance its reliability, facilitating secure and stable installation in your preferred location.

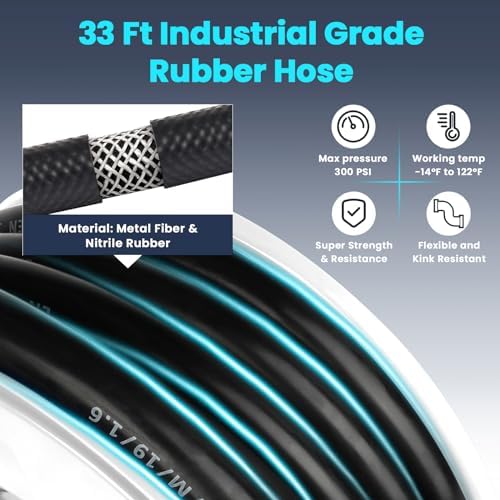

- Industrial-grade NBR Hose: With a max working pressure of 300 PSI/20BAR, this heavy-duty fuel transfer hose is designed to achieve fast flow rates. The 33-foot-long rubber hose is constructed with superior strength, capable of withstanding bending and abrasion, as well as exhibiting resistance to heat, ozone, and fading. This fuel hose can operate effectively in harsh conditions ranging from -14°F to 122°F, ensuring stability and reliability in any environment.
- 1" NPT Solid Brass Rotary Joint: The diesel fuel hose reel features 1" NPT fittings made entirely from solid brass. With high hardness and robust chemical resistance, these fittings are highly durable and offer an extended service life, ensuring smooth and uninterrupted fluid flow without any fuel leakage. Suitable for deployment in diverse industries, including agriculture, industrial, Mining, and transportation. It is also ideal for on-site connections, facilitating large-volume delivery refueling with ease.

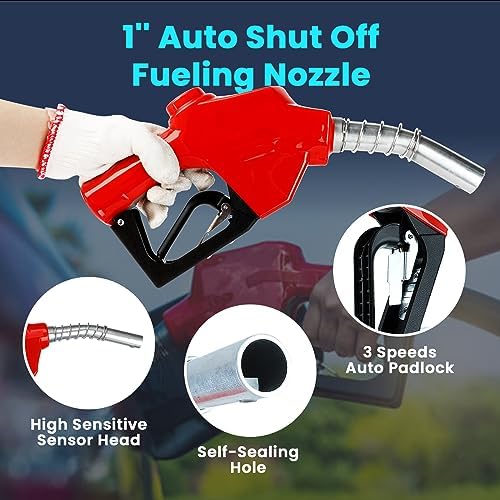

- Automatic Shut-Off Fuel Nozzle: This fuel tank hose reel contain a fuel nozzle is made of premium-grade aluminum alloy, and boasts an inlet and outlet size of 1", delivering a maximum flow rate of 120L/Min. It features three gears of high, medium, and low, enabling efficient control of the flow rate, thus expediting the refueling process. During refueling, the nozzle automatically shuts off when the oil tank is full, and the self-sealing hole is blocked by the oil, preventing any potential leakage.
Overview
- Brand : Ecojoy
- Material : Brass, Carbon Steel, Rubber
- Color : Silver

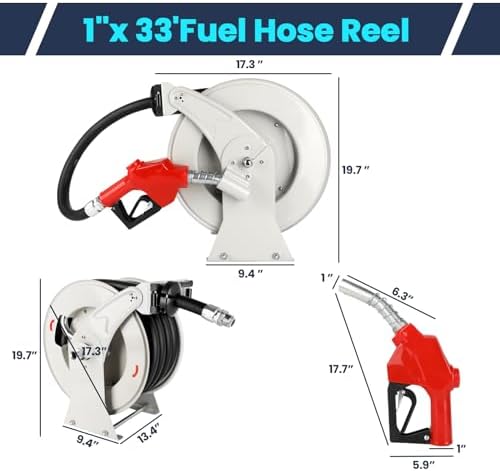

- Item dimensions L x W x H : 15.74 x 11.81 x 19.69 inches
- Style : Diesel
