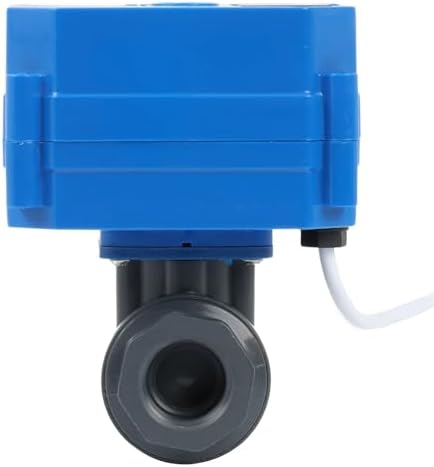

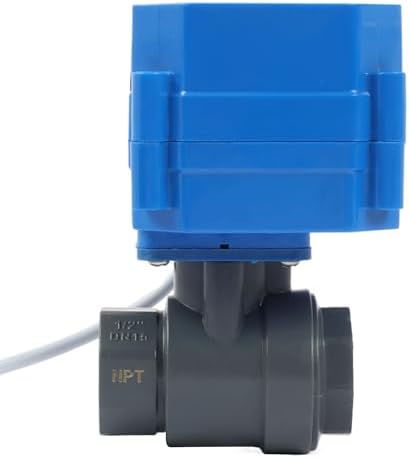

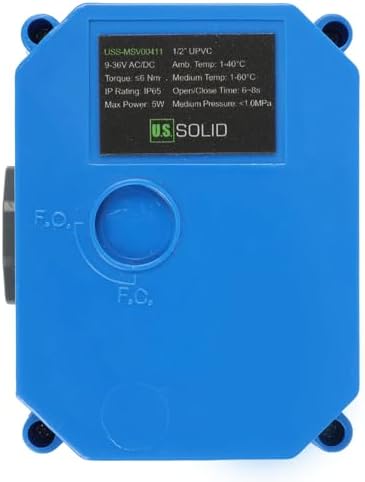

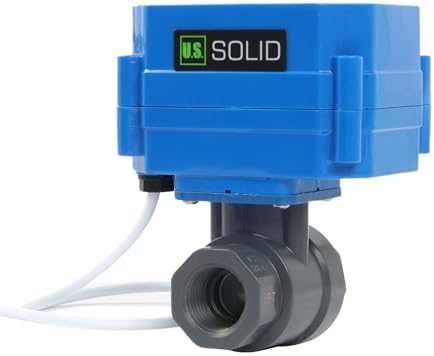

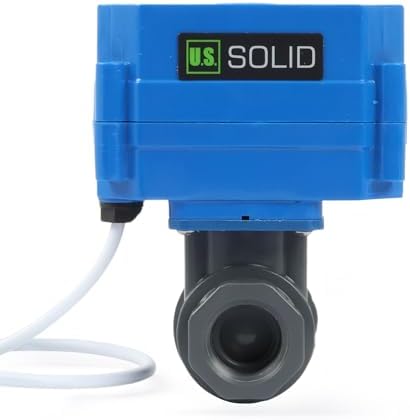

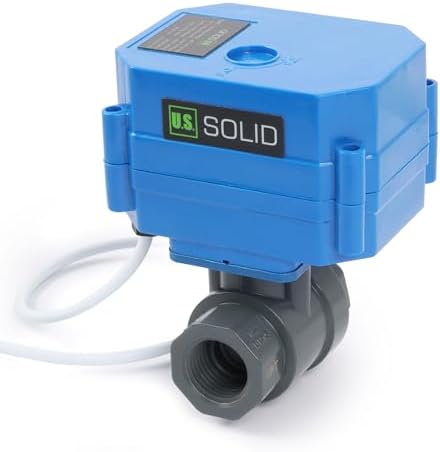

U.S. Solid 1/2 in UPVC Motorized Ball Valve, 9-24 V AC/DC, 2-Wire Auto Return, Normally Closed, Standard Port 13.5 mm Bore, IP65 by USSolid

U.S. Solid 1/2 in UPVC Motorized Ball Valve, 9-24 V AC/DC, 2-Wire Auto Return, Normally Closed, Standard Port 13.5 mm Bore, IP65

$84.78
Skip to product information
U.S. Solid 1/2 in UPVC Motorized Ball Valve, 9-24 V AC/DC, 2-Wire Auto Return, Normally Closed, Standard Port 13.5 mm Bore, IP65 by USSolid
  • U.S. Solid 1/2 in UPVC Motorized Ball Valve, 9-24 V AC/DC, 2-Wire Auto Return, Normally Closed, Standard Port 13.5 mm Bore, IP65 by USSolid
  • U.S. Solid 1/2 in UPVC Motorized Ball Valve, 9-24 V AC/DC, 2-Wire Auto Return, Normally Closed, Standard Port 13.5 mm Bore, IP65 - Image 2
  • U.S. Solid 1/2 in UPVC Motorized Ball Valve, 9-24 V AC/DC, 2-Wire Auto Return, Normally Closed, Standard Port 13.5 mm Bore, IP65 - Image 3
  • U.S. Solid 1/2 in UPVC Motorized Ball Valve, 9-24 V AC/DC, 2-Wire Auto Return, Normally Closed, Standard Port 13.5 mm Bore, IP65 - Image 4
  • U.S. Solid 1/2 in UPVC Motorized Ball Valve, 9-24 V AC/DC, 2-Wire Auto Return, Normally Closed, Standard Port 13.5 mm Bore, IP65 - Image 5
  • U.S. Solid 1/2 in UPVC Motorized Ball Valve, 9-24 V AC/DC, 2-Wire Auto Return, Normally Closed, Standard Port 13.5 mm Bore, IP65 - Image 6
U.S. Solid 1/2 in UPVC Motorized Ball Valve, 9-24 V AC/DC, 2-Wire Auto Return, Normally Closed, Standard Port 13.5 mm Bore, IP65

U.S. Solid 1/2 in UPVC Motorized Ball Valve, 9-24 V AC/DC, 2-Wire Auto Return, Normally Closed, Standard Port 13.5 mm Bore, IP65

$84.78
Product details

About This

  • CORROSION-RESISTANT UPVC BODY: Rugged plastic valve body resists rust, acids, alkalis, and harsh chemicals; standard-port 13.5 mm bore delivers reliable, efficient flow control for water and other non-flammable liquids
  • AUTOMATED SAFETY SHUT-OFF: The 2-wire auto-return design opens the valve when energized and automatically returns to the fully closed position during power loss for leak prevention and emergency line isolation
  • LOW-POWER SOLENOID ALTERNATIVE: Runs on 9 to 24 V AC/DC drawing 5 W and cycles in 6 to 8 seconds; once fully open, an internal limit switch cuts main motor power to draw minimal maintenance current with little heat
  • IP65 WEATHERPROOF RATED: Sealed housing seals against dust and low-pressure water jets; the PTFE seat keeps a tight, leak-proof seal across 32°F to 140°F (0°C to 60°C) media temperatures for outdoor or aquaculture installs
  • LEAD-FREE AND LONG LIFE: Lead-free UPVC construction is safe for drinking water, irrigation, and hydroponics; standard 1/2 in NPT threads simplify installation with a rated service life of 80,000 to 100,000 cycles

Overview

  • Material : Polyvinyl Chloride (PVC)
  • Brand : U.S. Solid
  • Item dimensions L x W x H : 4.13 x 3.23 x 2.44 inches
  • Exterior Finish : UPVC
  • Inlet Connection Type : Threaded
  • Maximum Operating Pressure : 10 bar
  • Number of Ports : 2
  • Specification Met : NSF, ANSI 61, ANSI 372
  • Unit Count : 1 Count
  • Manufacturer : U.S. Solid
