100FT 1/4" DOT Air Line Kit with 22PCS Brass Fittings, Cutter & Teflon Tape
100FT 1/4" DOT Air Line Kit with 22PCS Brass Fittings, Cutter & Teflon Tape
Push-to-Connect Fittings
Product details
About This

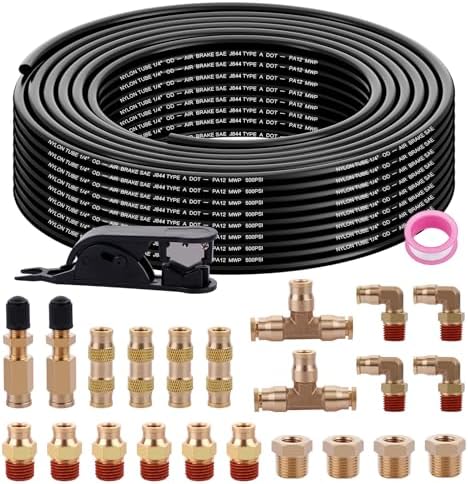

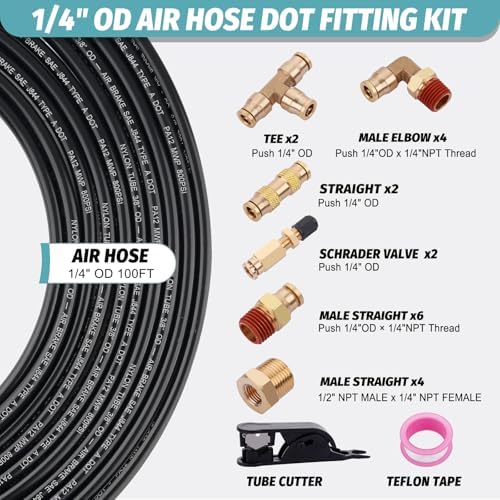

- 【1/4 Air Hose Fittings Kit】Package includes: 100FT 1/4” tube OD DOT air line, 6pcs push 1/4”OD x 1/4" NPT thread Male straight, 4pcs push 1/4”OD x 1/4" NPT thread Male elbow, 4pcs 1/4” OD straight, 2pcs 1/4” air inflation schrader valve, 2pcs 1/4” OD tee, 4pcs 1/2” NPT Male x 1/4" NPT Female hex head bushing, 1pc tube cutter, 1pc Teflon tape

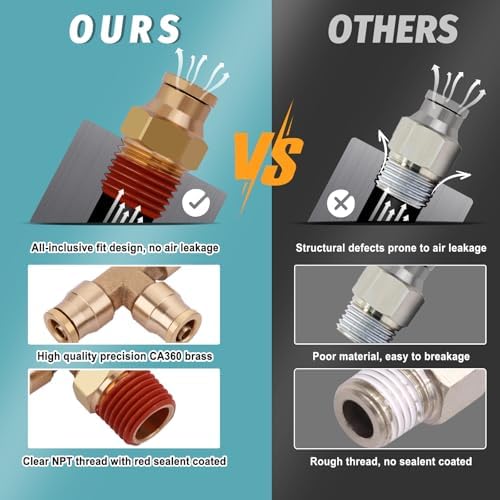

- 【High Quality Precision Brass】18pcs 1/4" OD push to connect fittings + 4pcs hex head bushings pipe fittings, made of high quality solid CA360 brass, durability and corrosion resistance. Withstands pressures up to 250psi, and wide temperature range from -40℉ to 160℉(-53℃ to 121℃). Our air fittings Meet D.O.T. FMVSS 571.106 approved, SAE J1131 air brake system requirements

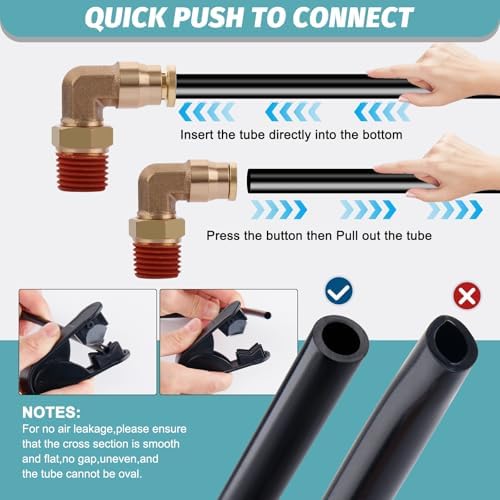

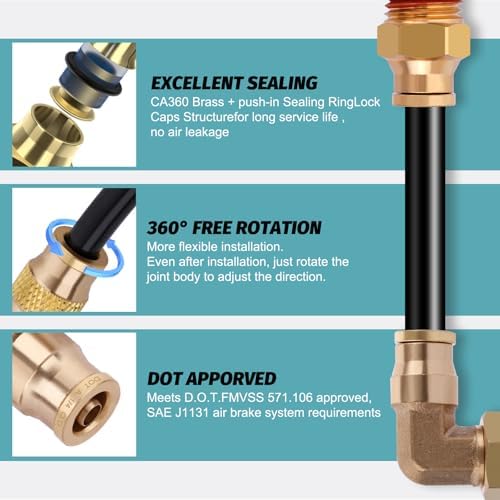

- 【Quick Push to Connect】PTC (Push-to-Connect) design for quick and easy connection and disassembly to air lines, just insert the tube directly into the air tube bottom for connection, and press the button then pull out the tube for disassembly. The connecting part can be rotated 360 degrees, allows you easier to install and use. Even after installation, just rotate the joint body to adjust the direction
- 【PA12 Nylon Tubing - High Resistance & Multiple Transfer】SAE J 844 type 1/4” OD × 100FT(30.5meters) air line DOT approved, made of high quality Polyamide 12 nylon, meet a wide range of transportation needs, such as water, air, fuel, oil, etc. High quality abrasion and impact resistance to withstand most wear and tear. Tube size: 1/4" OD × 4.35mm ID, working temperature: -40℉ to +248℉(-40℃ to +120℃), max working pressure: 500 PSI

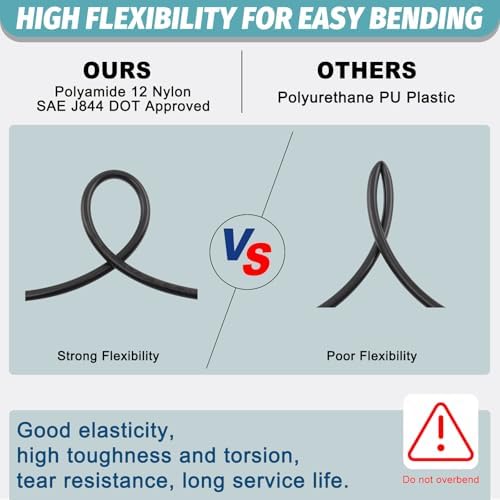

- 【High Flexibility for easy bending】High toughness nylon DOT tubing, you can bend it easily. Note: please bend it under limited condition, do not over bend it to affect the usage. For no air leakage, the cross section of the air line must be smooth and flat, no gap, uneven, and the tube cannot be oval. Our air tubing come with a tube cutter to make cutting more convenient and easier
- 【Application】Boeray nylon brake line with DOT push to connect fittings is perfect for air brake systems such as air bag spring suspension line repair kits, fluid transfer like water oil and fuel for automotive vehicle marine, chemical transport, instrumentation lines, paint spraying, garden irrigation control systems, LPG and compressed natural gas systems, misting systems, pneumatic systems, clutch systems, etc
Overview
- Size : 1/4“OD 100FT KIT
- Brand : boeray
- Color : Black
- Connector Type : Quick-connect
- Thread Size : 1/4 inch
- Thread Type : NPT
- Item Weight : 1.19 kg
- Number of Pieces : 23
- Number of Packs : 1
- Manufacturer : boeray
