1" Motorized Ball Valve 5 Wire - DC 9-24V Electric Water Valve, Full Port Automatic Ball Valve, Compatible with Signal Feedback, Manual Override, Stainless Steel, NSF Certified, IP67
1" Motorized Ball Valve 5 Wire - DC 9-24V Electric Water Valve, Full Port Automatic Ball Valve, Compatible with Signal Feedback, Manual Override, Stainless Steel, NSF Certified, IP67
Ball Valves
Product details
About This
- 5 Wire & Signal Feedback—When the ball valve is fully open or closed, the actuator automatically cuts off power to prevent circuit overheating during prolonged operation. The control method employs reverse polarity wiring (black wire: negative terminal, red wire: positive terminal, white wire: common terminal, green wire: open position signal, yellow wire: closed position signal). The open/close position indicator lights illuminate.

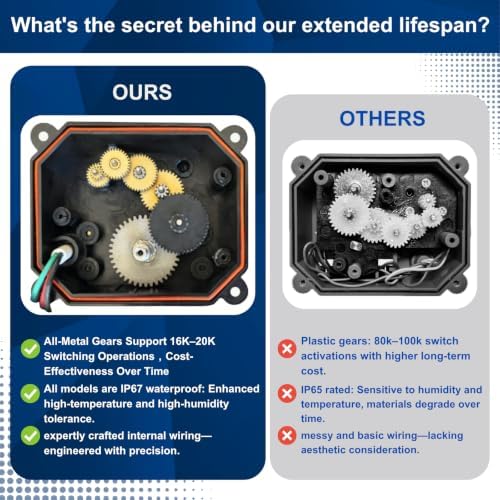

- Durable & Long-Lasting–Built from SS304 steel, NSF Certified,is safe for drinking water, movafaFH motorized ball valve withstands 160,000 - 200,000+ switching operations, perfect for automated water control systems

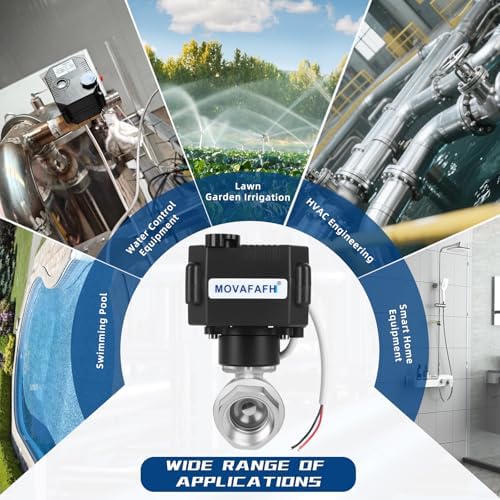

- No Leak & Wide Applications - Adopt silicone rubber gasket and float ball valve that superior sealing performance and good resistance to water, weak acids, weak alkalis, and alcohol. Ideal for HVAC,Medical Equipment,Farm Irrigation,Water Treatment,Energy Storage Equipment

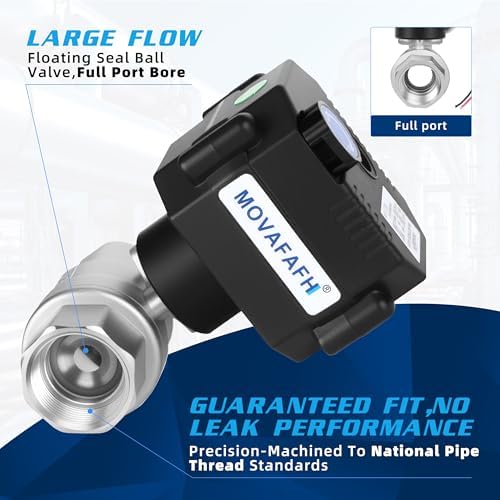

- NPT Threading & Full Port–Features 1" stainless steel full port and NPT threading for fit connections, effectively reduces pressure loss, ensuring optimal flow dynamics and efficiency
- Wide 9-24V DC Compatibility - Opening and closing in just 3-5 seconds. Equipped with limit switches that automatically disconnect power when fully open or closed, helping reduce power consumption. A reliable alternative to traditional solenoid valves.
Overview
- Material : Stainless Steel
- Brand : movafaFH
- Item dimensions L x W x H : 2.56 x 1.97 x 3.54 inches
- Exterior Finish : Stainless Steel
- Inlet Connection Size : 1 inches
- Inlet Connection Type : National Pipe Tapered
- Outlet Connection Type : FNPT
- Maximum Operating Pressure : 1000 kilopascal
- Number of Ports : 2
- Outlet Connection Size : 1 inches
