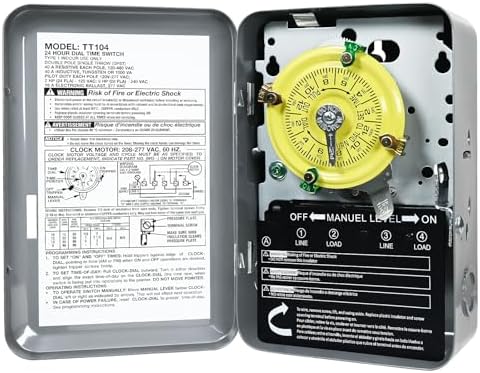

T104 Pool Timer, Mechanical Time Switch Mechanism 208-277VAC 5HP 40A DPST
T104 Pool Timer, Mechanical Time Switch Mechanism 208-277VAC 5HP 40A DPST
Timer Switches
Product details
About This
- Specifications: The T104 mechanical time switch voltage rating is 208-277 VAC, 60Hz, suitable for 240 volt timer replace and 220 volt timer replace. The time switch can handle elctrical loads up to 40A per pole, providing robust and reliable control for a wide range of applications. Switch Type: DPST(Double Pole Single Throw); Time Interval: 15 minute; Operation temperature: -40-130℉(-40-54℃)

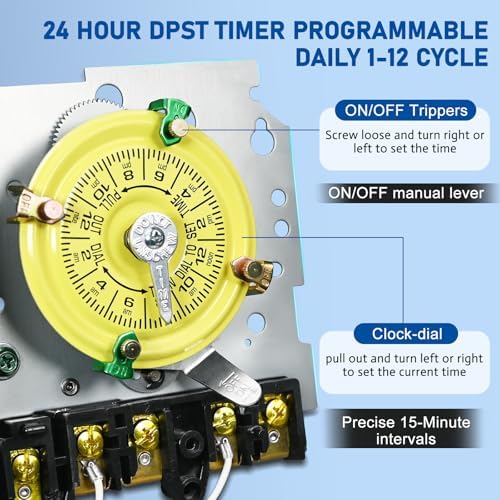

- 24-Hour Control: The T104 mechanical time switch provides up to 12 ON/OFF operations each day with a minimum ON/OFF time of one hour, manual override

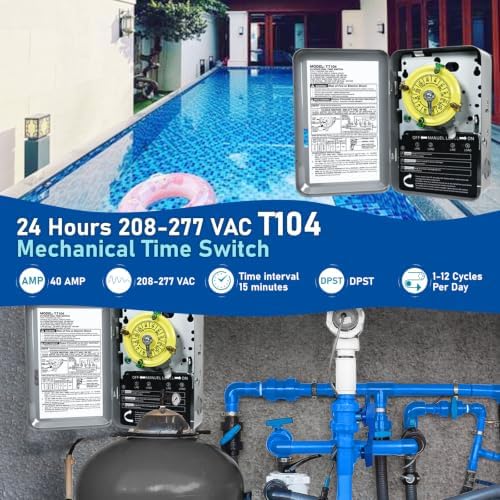

- Wide Applications: The T104 mechanical time switch can be applied to control swimming pool pumps, pool heaters, blowers, indoor/outdoor lighting, signs, filters, fans and other electrical loads; It ensures consistent operation without the complexity of digital controls
- Package Included: 1* T104 mechanical time switch; 2* ON trippers; 2* OFF trippers; 1* instruction sheet

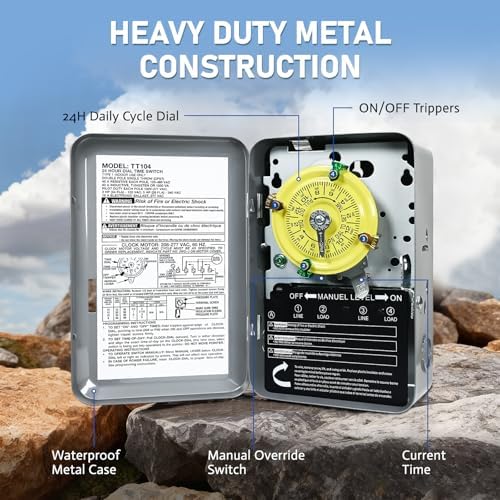

- Manual Override Switch: The T104 mechanical time switch features a manual override switch, giving users the ability to bypass the programmed schedule when necessary without interrupting ongoing cycles
- Easy Installation: The terminals (line, load, neutral, ground) are clearly marked and the instruction sheet has the correct wiring diagram and the timer setting insturctions
Overview
- Color : T104
- Brand : JKLESA
- Material : Metal
- Product Dimensions : 2.7"D x 4.8"W x 6"H
- Number of settings : 12
