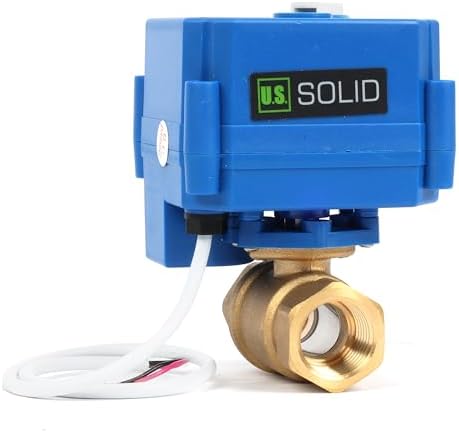

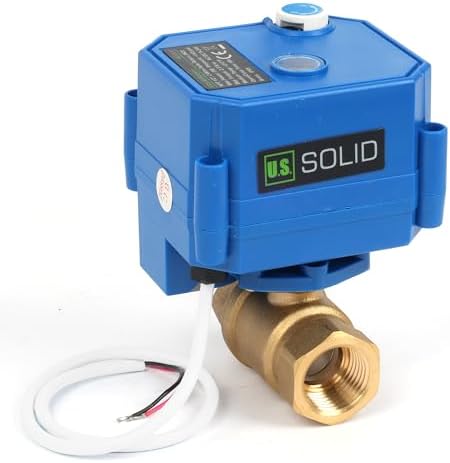

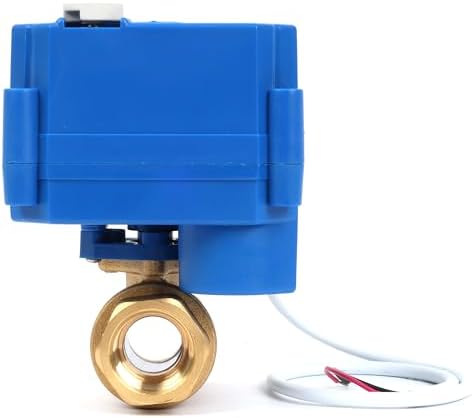

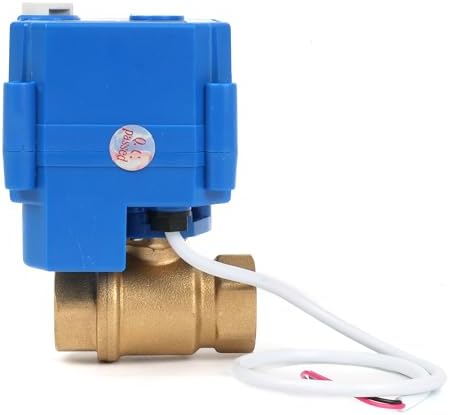

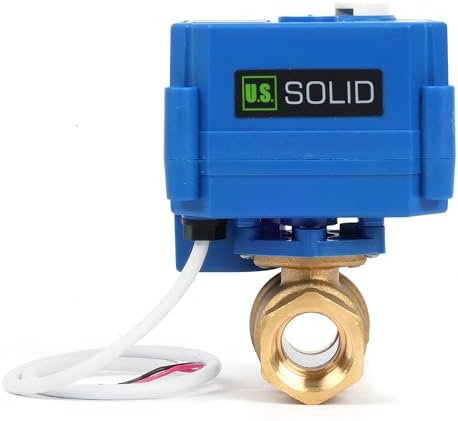

U.S. Solid 1/2 in Brass Motorized Ball Valve, 9-24 V AC/DC, 2-Wire Auto Return, Normally Open, Full Port, Manual Override, Position Indicator
U.S. Solid 1/2 in Brass Motorized Ball Valve, 9-24 V AC/DC, 2-Wire Auto Return, Normally Open, Full Port, Manual Override, Position Indicator
Ball Valves
Product details
About This

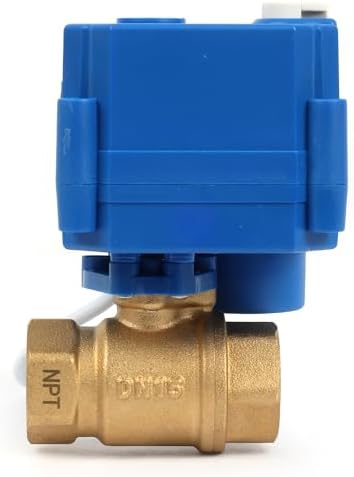

- FULL PORT BRASS BODY: The forged brass body with 1/2 in NPT threads has a full-port 15 mm bore for full flow and minimal pressure drop on water, air, gas, and oil lines; the brass contains lead, not for drinking water
- WIDE 9-24 V AC/DC ACTUATION: Operates across the full 9 to 24 V AC/DC range and drives the ball fully closed or open in 6 to 7 seconds with 2.5 Nm of torque for smooth, automated on/off control
- 2-WIRE AUTO RETURN, NORMALLY OPEN: A 2-wire auto-return design drives the valve closed when energized and automatically returns it to the fully open position on power loss, so the line defaults open for cooling loops and fail-open safety
- LOW-POWER SOLENOID ALTERNATIVE: Once fully closed, an internal limit switch cuts the drive motor, so it draws only minimal maintenance current with little heat, unlike a solenoid coil that stays hot and power-hungry during long holds

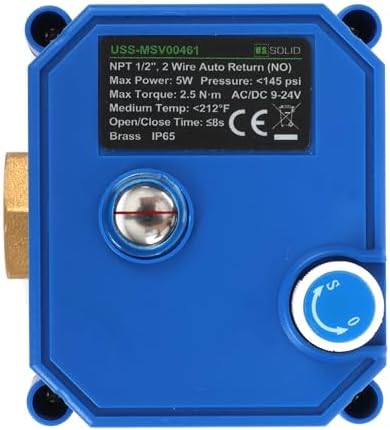

- MANUAL OVERRIDE AND POSITION INDICATOR: A manual override turns the valve by hand during a power outage, and a visual position indicator shows open or closed; forged brass with PTFE and silicone seats rated for 80,000 to 100,000 cycles
Overview
- Material : Brass
- Brand : U.S. Solid
- Item dimensions L x W x H : 3.62 x 2.86 x 2.52 inches
- Exterior Finish : Brass
- Inlet Connection Size : 0.5 inches
- Maximum Operating Pressure : 10 bar
- Number of Ports : 2
- Unit Count : 1 Count
- Manufacturer : U.S. Solid
- Number of Items : 1
