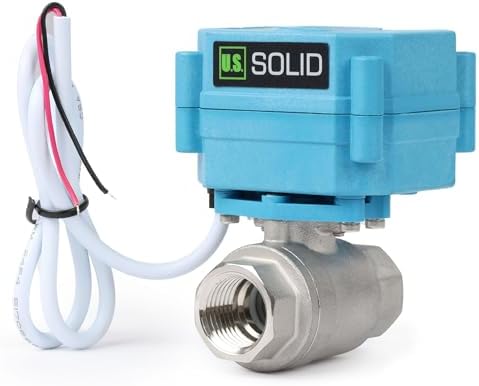

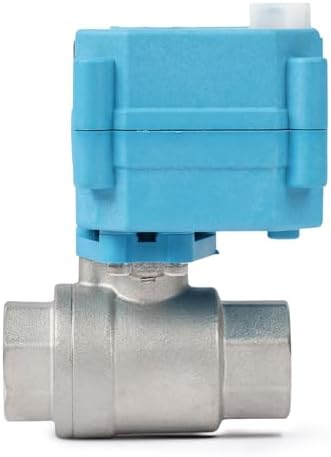

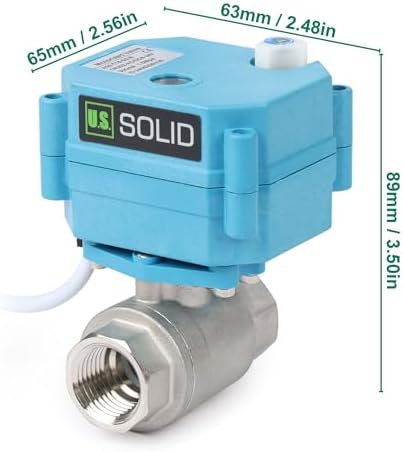

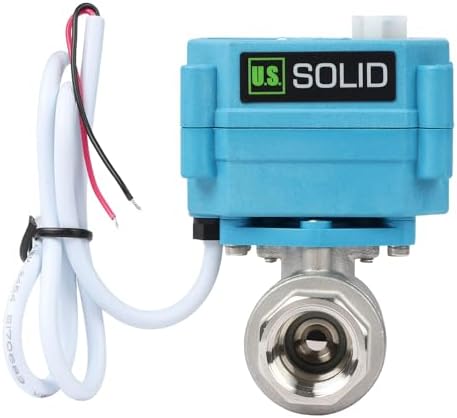

U.S. Solid Motorized Ball Valve - IP67 1/2inch Stainless Steel Ball Valve 9-24V with Waterproof Cover, Full Port, Manual Function, 2 Wire Auto Return, NPT, Normally Open
U.S. Solid Motorized Ball Valve - IP67 1/2inch Stainless Steel Ball Valve 9-24V with Waterproof Cover, Full Port, Manual Function, 2 Wire Auto Return, NPT, Normally Open
Ball Valves
Product details
About This
- STAINLESS STEEL, FULL PORT: The corrosion-resistant stainless steel body with an FKM seat and full-port 15 mm bore gives full flow for water and air in HVAC, irrigation, water treatment, and industrial lines

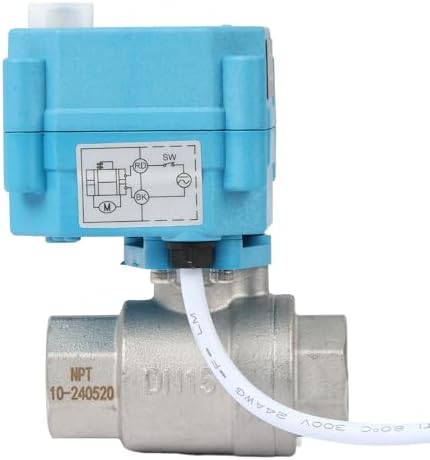

- 2-WIRE AUTO RETURN, NORMALLY OPEN: Energize to close the valve; on power loss it automatically returns to the fully open position, keeping the line open by default for cooling loops and systems that must not block flow
- LOW-POWER SOLENOID ALTERNATIVE: Once fully closed, an internal limit switch cuts the motor, drawing minimal current with little heat, a cool-running swap for solenoids on long holds in solar and off-grid setups
- SAFE LOW-VOLTAGE 9-24 V AC/DC: Runs on solar, battery, or RV and marine 12-24 V systems and integrates with PLC, Arduino, and home automation; rated to 1.0 MPa (145 psi) for wet-area and off-grid control

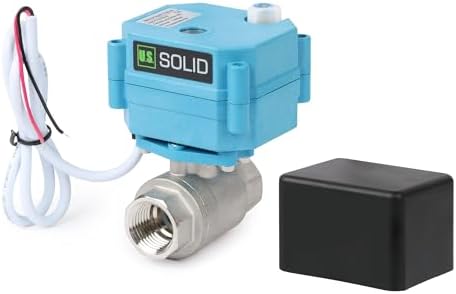

- MANUAL OVERRIDE, POSITION INDICATOR, WATERPROOF COVER: A manual override and visual position indicator let you turn and check the valve by hand; the IP67 actuator with a waterproof cover handles outdoor and washdown installs for 70,000 cycles
Overview
- Material : Stainless Steel
- Brand : U.S. Solid
- Exterior Finish : Stainless Steel
- Inlet Connection Size : 0.5 inches
- Inlet Connection Type : National Pipe Tapered
- Outlet Connection Type : NPT
- Maximum Operating Pressure : 145 psi
- Outlet Connection Size : 0.5 inches
- Number of Packs : 1
- Global Trade Identification Number : 00888107124856
