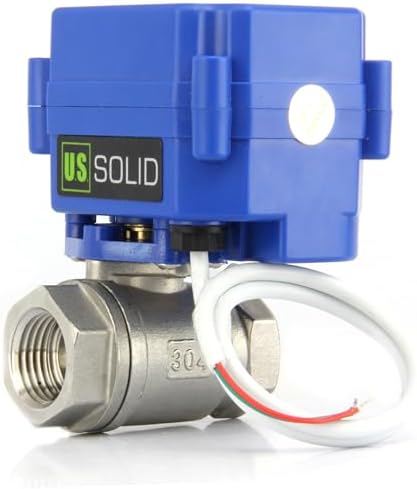

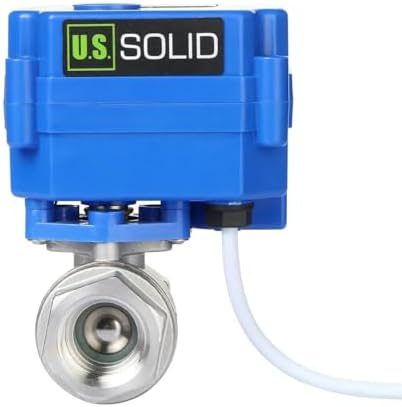

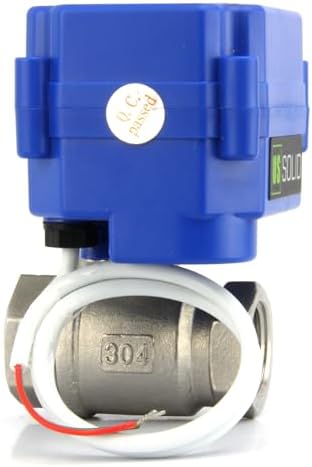

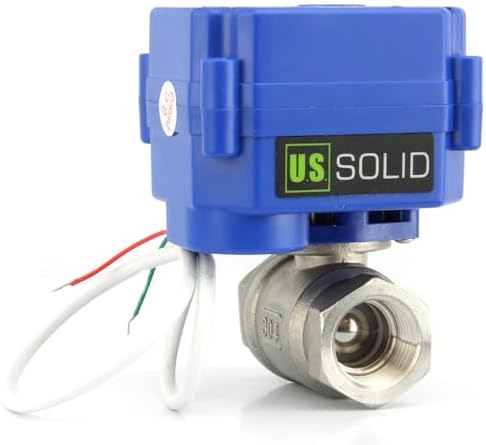

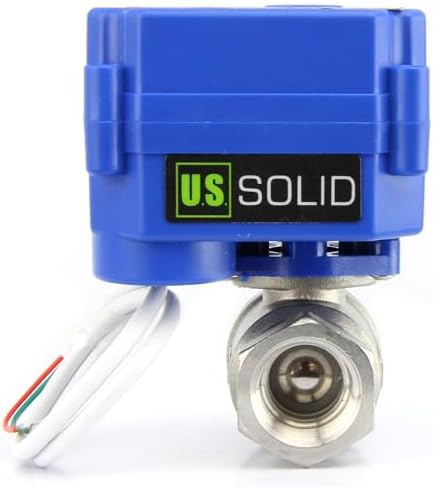

U.S. Solid Motorized Ball Valve- 1/2" NSF Certified 304SS Ball Valve with Full Port, 9-24V AC/DC and 2 Wire Auto Return Setup (Pack of 12)
U.S. Solid Motorized Ball Valve- 1/2" NSF Certified 304SS Ball Valve with Full Port, 9-24V AC/DC and 2 Wire Auto Return Setup (Pack of 12)
Ball Valves
Product details
About This
- NSF CERTIFIED 304 STAINLESS STEEL: The metal components are NSF Certified 304 stainless steel that resists corrosion and is safe for drinking water; a lead-free path for potable water and general fluid lines
- 2-WIRE AUTO RETURN NORMALLY CLOSED: A simple two-wire connection opens the valve when energized and automatically returns it to the normally closed position when power is removed; keep it powered to hold open
- 9-24 V AC/DC ACTUATION: Operates across the full 9 to 24 V AC/DC range and drives fully open or fully closed in 3 to 5 seconds; draws 5 W with 2 Nm of torque; low power draw after reaching position helps reduce heat buildup

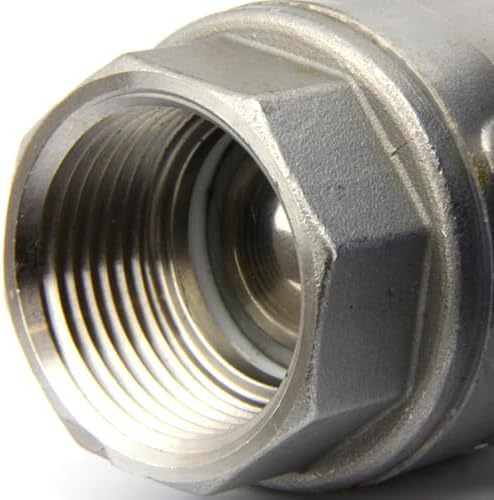

- FULL PORT UNRESTRICTED FLOW: The full-port bore matches the 1/2 inch pipe with a 15 mm opening for full, unrestricted flow and minimal pressure drop, suited to water, air, gas, and oil lines in home and irrigation systems
- IP65 RATED AND DURABLE: The IP65 enclosure seals against dust and water spray from all directions; PTFE and silicone seats with an NPT thread deliver a rated service life of 80,000 to 100,000 cycles for years of reliable use
Overview
- Material : Stainless Steel
- Brand : U.S. Solid
- Item dimensions L x W x H : 3.8 x 2.8 x 2.5 inches
- Number of Ports : 2
- Unit Count : 192 Ounce
- Manufacturer : U.S. Solid
- Number of Items : 12
- UPC : 888107125044
