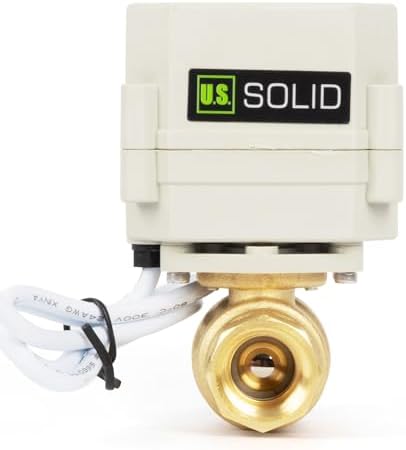

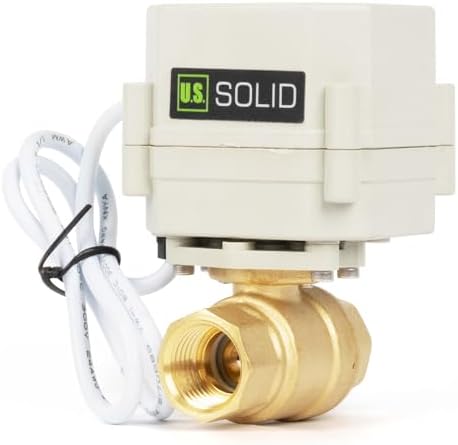

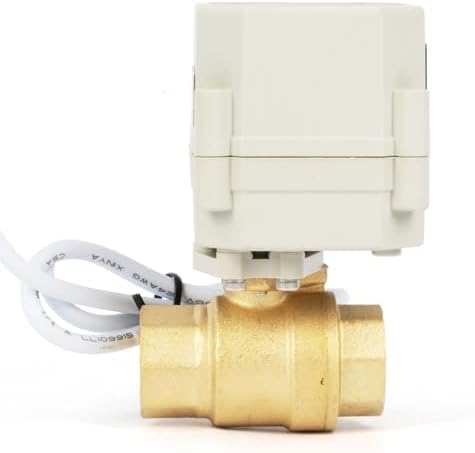

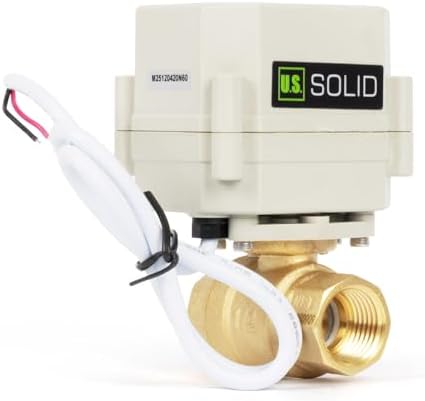

U.S. Solid 1/2 in Motorized Ball Valve with Programmable Auto On-Off Cycle Timer, 2-Way Brass Electric Actuator, 00:00:00-99:59:59 Timing, IP67, AC/DC 9-24 V, NPT, for Water and Air by USSolid

U.S. Solid 1/2 in Motorized Ball Valve with Programmable Auto On-Off Cycle Timer, 2-Way Brass Electric Actuator, 00:00:00-99:59:59 Timing, IP67, AC/DC 9-24 V, NPT, for Water and Air

$198.00
Skip to product information
U.S. Solid 1/2 in Motorized Ball Valve with Programmable Auto On-Off Cycle Timer, 2-Way Brass Electric Actuator, 00:00:00-99:59:59 Timing, IP67, AC/DC 9-24 V, NPT, for Water and Air by USSolid
  • U.S. Solid 1/2 in Motorized Ball Valve with Programmable Auto On-Off Cycle Timer, 2-Way Brass Electric Actuator, 00:00:00-99:59:59 Timing, IP67, AC/DC 9-24 V, NPT, for Water and Air by USSolid
  • U.S. Solid 1/2 in Motorized Ball Valve with Programmable Auto On-Off Cycle Timer, 2-Way Brass Electric Actuator, 00:00:00-99:59:59 Timing, IP67, AC/DC 9-24 V, NPT, for Water and Air - Image 2
  • U.S. Solid 1/2 in Motorized Ball Valve with Programmable Auto On-Off Cycle Timer, 2-Way Brass Electric Actuator, 00:00:00-99:59:59 Timing, IP67, AC/DC 9-24 V, NPT, for Water and Air - Image 3
  • U.S. Solid 1/2 in Motorized Ball Valve with Programmable Auto On-Off Cycle Timer, 2-Way Brass Electric Actuator, 00:00:00-99:59:59 Timing, IP67, AC/DC 9-24 V, NPT, for Water and Air - Image 4
  • U.S. Solid 1/2 in Motorized Ball Valve with Programmable Auto On-Off Cycle Timer, 2-Way Brass Electric Actuator, 00:00:00-99:59:59 Timing, IP67, AC/DC 9-24 V, NPT, for Water and Air - Image 5
  • U.S. Solid 1/2 in Motorized Ball Valve with Programmable Auto On-Off Cycle Timer, 2-Way Brass Electric Actuator, 00:00:00-99:59:59 Timing, IP67, AC/DC 9-24 V, NPT, for Water and Air - Image 6
U.S. Solid 1/2 in Motorized Ball Valve with Programmable Auto On-Off Cycle Timer, 2-Way Brass Electric Actuator, 00:00:00-99:59:59 Timing, IP67, AC/DC 9-24 V, NPT, for Water and Air

U.S. Solid 1/2 in Motorized Ball Valve with Programmable Auto On-Off Cycle Timer, 2-Way Brass Electric Actuator, 00:00:00-99:59:59 Timing, IP67, AC/DC 9-24 V, NPT, for Water and Air

$198.00
Product details

About This

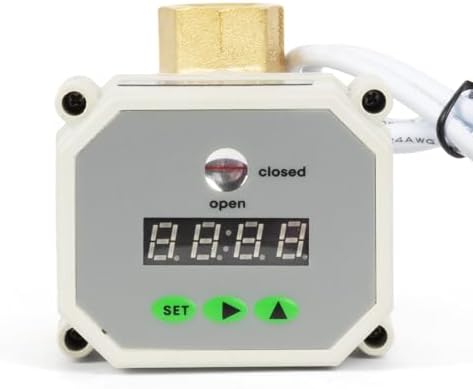

  • PROGRAMMABLE OPEN, CLOSE, AND REPEAT CYCLE: A built-in digital timer sets exact open and close durations from 00:00:00 to 99:59:59, then repeats the cycle on its own to automate any plumbed water or air line
  • SOLID BRASS BODY FOR WATER, AIR, AND OIL: The durable brass body suits water, air, and oil lines in HVAC, irrigation, and industrial automation; the brass contains lead and is not suitable for drinking water
  • MOTORIZED, NOT SOLENOID, LOW HEAT: A motor drives the ball; an internal limit switch cuts the motor once it reaches open or closed, so it draws minimal holding current and stays cool; the valve keeps its last position if power is lost

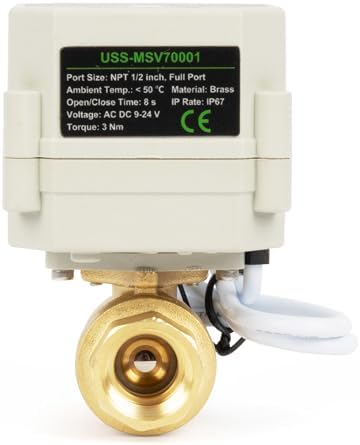

  • 1.0 MPA, WIDE TEMPERATURE, LONG-LIFE ACTUATOR: Handles up to 1.0 MPa (145 psi), fluid 2°C to 90°C (36°F to 194°F); FKM and PTFE seals with a 90 degree, 3 Nm quarter-turn actuator for over 70,000 open and close cycles
  • IP67 SEALED, 9-24 V AC/DC POWER: The IP67 housing keeps out dust and moisture for damp and washdown areas; wide 9 to 24 V AC/DC suits solar, battery, PLC, and smart home setups for irrigation, recycling, dosing, and process lines

Overview

  • Material : Brass
  • Brand : U.S. Solid
  • Item dimensions L x W x H : 2.55 x 2.55 x 3.54 inches
  • Exterior Finish : Brass
  • Inlet Connection Size : 0.5 inches
  • Inlet Connection Type : National Pipe Tapered
  • Outlet Connection Type : NPT
  • Maximum Operating Pressure : 145 psi
  • Number of Ports : 2
  • Outlet Connection Size : 0.5 inches
