T101 Mechanical Timer Switch,120V 40A SPST,2HP for Outdoor Light Timer, Water Heater, HVAC & Pool Pump – 12 ON/Off Cycles, Switch T101 for Light Lighting Water Heater Fan and HVAC Systems
T101 Mechanical Timer Switch,120V 40A SPST,2HP for Outdoor Light Timer, Water Heater, HVAC & Pool Pump – 12 ON/Off Cycles, Switch T101 for Light Lighting Water Heater Fan and HVAC Systems
Timers
Product details
About This

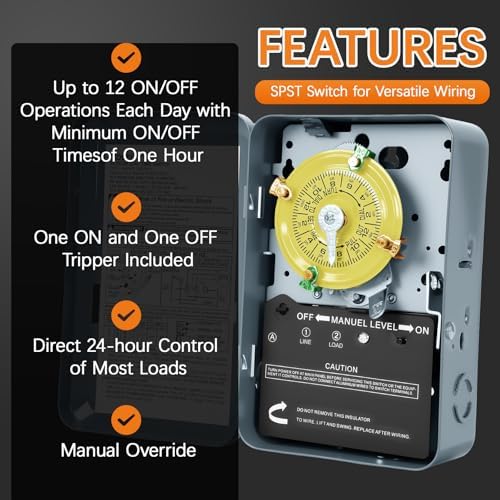

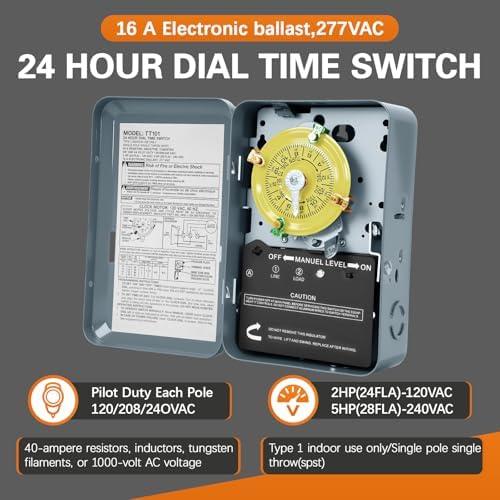

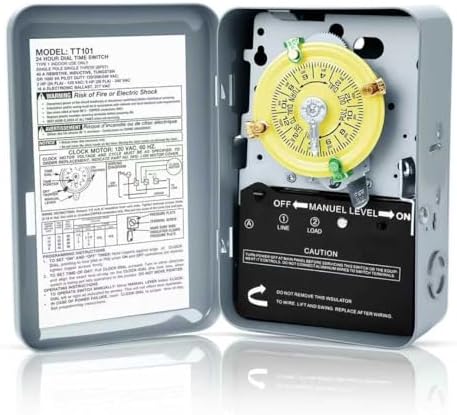

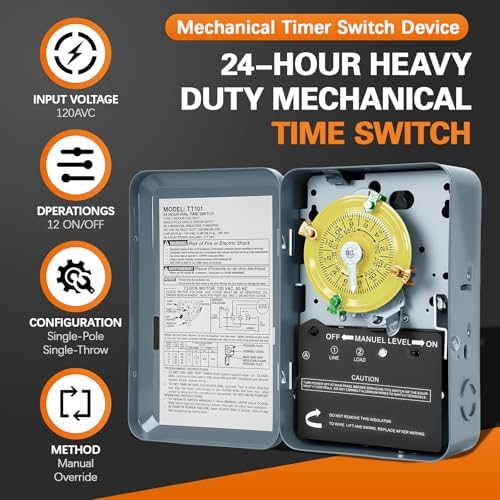

- The T101 electromechanical timer switch is a 40A rated current pool pump timer with a housing, suitable for 120V systems. The T101 24-hour timer features a single-pole single-throw (SPST) switch for dual-loop control. With a minimum run time of 1 hour, it allows for precise timing. Constructed from precision materials, the T101 timer can withstand extreme temperatures from -40°F to 140°F for ease of use.
- Control: The pool pump timer features a 24-hour dial with 15-minute increments for easy timing. A manual control switch allows immediate control of the device without interrupting programmed settings. The unit includes four on/off switches, allowing for up to 12 operations per day for automated control.

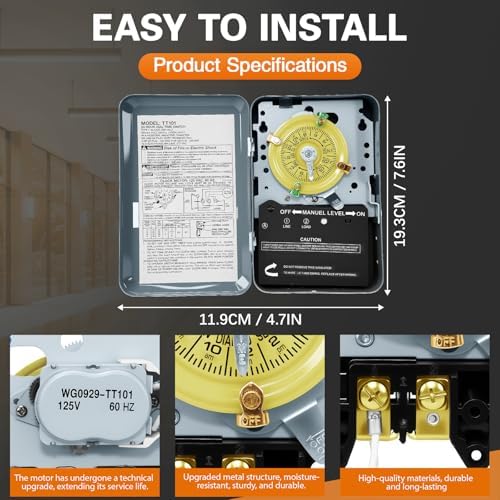

- Installation: The T101 mechanical timer is easy to install; terminals are provided for live, load, neutral, and ground. The instruction manual includes a correct wiring diagram. The timer comes with a separate mounting housing for outdoor protection. After pulling out the dial to set the time, it must be repositioned and fully inserted into the gear mechanism for proper operation.
- Versatile Applications: The T101 timer is versatile and suitable for controlling pool pumps, lighting timers, fans, exhaust fans, water heaters, and other equipment. The pump timer switch features a 40-amp rated current and a single-pole single-throw (SPST) switch, making it suitable for residential and commercial applications. Whether you are managing a backyard pool or a large irrigation project, this 40A mechanical timer provides stable performance.
- Note: The timer has a complex mechanical structure. Using metal protection products at the bearings and gear locations of the timer can improve the smoothness of the mechanical structure's operation, effectively solving problems such as the timer failing to start or stop automatically, gear jamming, and bearing jamming. We are committed to ensuring your timer operates perfectly for years to come. If you have any questions about the installation and use of the 24-hour mechanical timer, please contact us.
Overview
- Color : Yellow
- Brand : Genisai
- Material : Metal
- Product Dimensions : 1"D x 1"W x 1"H
- Item Weight : 1.2 pounds
