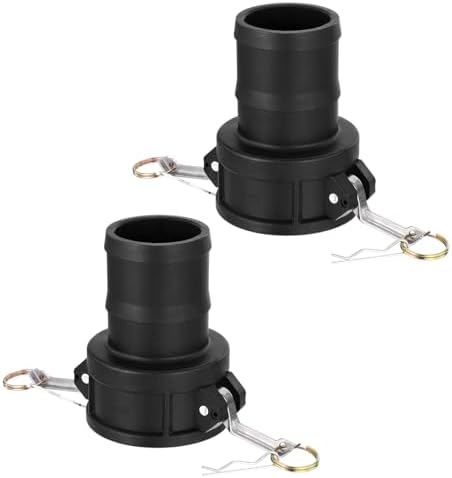

2Pcs Polypropylene Type C 3" x 3" Cam Lock Hose Fitting
Cam Groove Fittings
Product details
About This

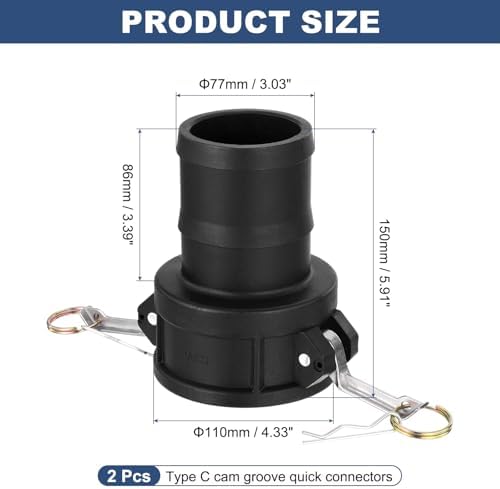

- Product Specifications: The package Cam Lock Fitting includes 2 Pcs Type C cam groove quick connectors. Key specifications feature a 110mm (4.33") outer diameter, 77mm (3.03") hose barb diameter, 150mm (5.91") overall length with 86mm (3.39") barb section. The 3" connection ensures secure attachment to standard piping systems.

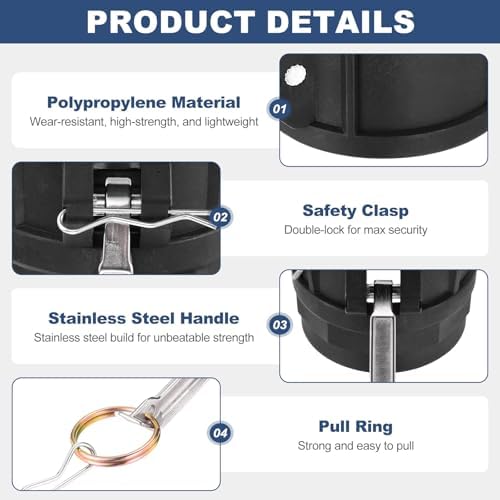

- Construction Material: The poly quick conversion connector is made of polypropylene (PP) plastic. It is lightweight, durable, wear-resistant, corrosion-resistant, has a long service life, low maintenance costs, and is suitable for harsh environments such as acids, solvents, etc.
- Functional Design: The type C cam groove fitting features a precision-machined hose barb design that ensures secure hose attachment and reliable sealing. The cam lever mechanism enables quick connect/disconnect functionality without specific tools. The integrated sealing surface, combined with the included spare gaskets, prevents leakage in fluid transfer applications.
- Simple Installation: First, ensure all connection surfaces and cam arms are clean and free from debris. Cut the hose and slide it over the barb section, securing with a stainless steel clamp (not included). Engage the cam levers fully until they lock in place with an audible click. Hand-tighten the fitting, then use a wrench for a final quarter turn to ensure proper seating.
- Common Applications: The cam and groove hose couplings are suitable for water transfer, irrigation systems, agricultural applications, workshop plumbing, chemical handling, and industrial fluid transfer systems. Suitable for garden watering, pool maintenance, sump pump connections, and general-purpose liquid transfer.
Overview
- Size : 3" x 3"
- Brand : Kozelo
- Color : Black
- Item dimensions L x W x H : 3.56 x 3 x 3.56 inches
- Connector Type : Adapter
- Exterior Finish : Polypropylene
- Manufacturer : Kozelo
- Item Highlight : Polypropylene Type C Camlock Cam Groove Fitting with 3.39" Hose Shank CamlockW/ Spare Gaskets,Black Polypropylene Type C Camlock Cam Groove Fitting with 3.39" Hose Shank CamlockW/ Spare Gaskets,Black
- Unit Count : 2 Count
