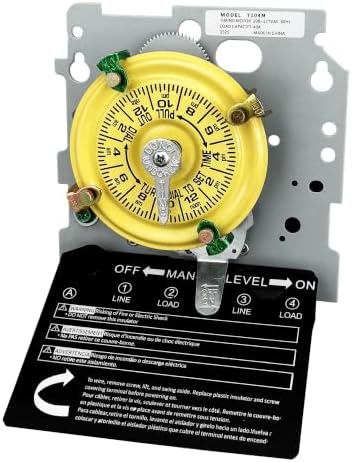

T104M Mechanical Timer Switch,208-277 VAC 5HP 40A DPST Pool Pump Timers Replacement,24-Hour12 ON/Off Cycles for Water Heater,Pool Pump,Lighting,Fans,Heavy-Duty Mechanical Time Switches(Mechanism Only)
T104M Mechanical Timer Switch,208-277 VAC 5HP 40A DPST Pool Pump Timers Replacement,24-Hour12 ON/Off Cycles for Water Heater,Pool Pump,Lighting,Fans,Heavy-Duty Mechanical Time Switches(Mechanism Only)
Timers
Product details
About This

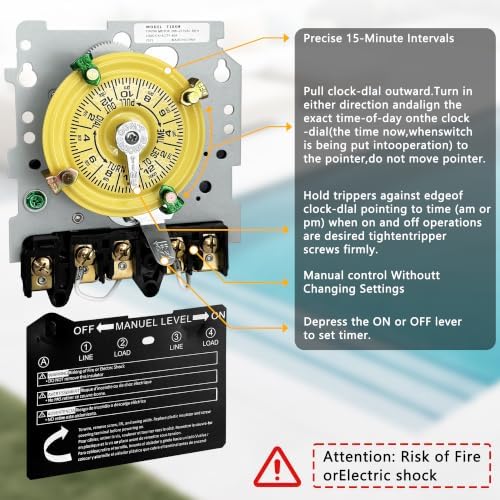

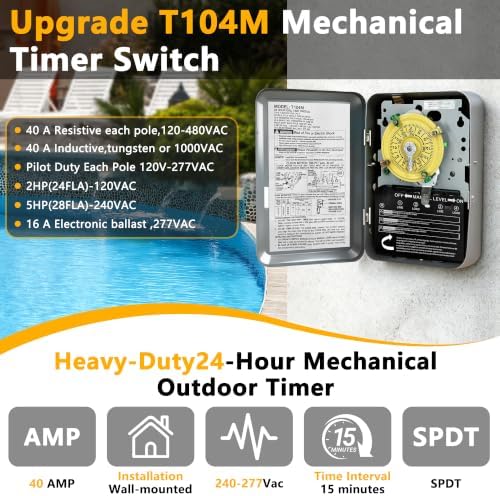

- Specifications: T104M Mechanical Timer Switch is designed for 240V (208-277VAC) systems operating at 60Hz. It features DPST switching and supports dual-circuit control, making it suitable for replacing both 240V and 220V timers. This timer can handle electrical loads of up to 40A per pole, providing robust and reliable control for a wide range of applications. The pool pump timer’s 24-hour mechanical dial allows for one on/off cycle per day, with a minimum runtime of 1 hour, facilitating precise scheduling. Switch Type: DPST (Double Pole Single Throw); Time Interval: 15 minutes; Operating Temperature Range: -40 to 130°F (-40 to 54°C)
- Easy to install and highly compatible: Detailed instructions are included to help you complete the installation with ease. In addition, all terminals (live, neutral, and ground) are clearly labeled, and the manual includes the correct wiring diagram. This product is compactly housed within most waterproof enclosures. When removing the timer, be sure to reposition it and insert it fully to ensure proper operation. Be sure to turn off all power sources before installation. You can also search for installation video tutorials on YouTube to install it yourself. After adjusting the time dial, be sure to reinsert it correctly into the gear mechanism to ensure proper operation.

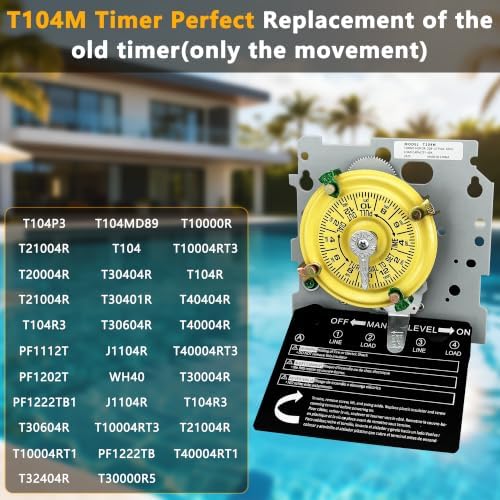

- Wide Range of Applications: The T104m mechanical timer has a wide range of applications. This timer is ideal for use with pool pumps, outdoor lighting, water heaters, and HVAC systems. It is well-suited for both residential and commercial applications and can handle resistive loads of up to 40A. Replaces your existing heavy-duty metal-cased and outdoor-rated timer modules: T104MD89, T04P3, T10004RT3, T30004R, T30604R, T40004RT3PF1222, TB1T104, T10000RT20004R, T30401R, T40004RPF1202, T104RT10004R, T21004R, T30404R, T40404R, PF1112, TWH40T104R3, T10004R, T1, T30000R5, T32404R, T40004 RT1, PF1222TB, WH40D89.
- Note：(This product is not compatible with timer models such as T101, T101M, T101R, T103, T103R, T103M, T106, T106R, and T106M.)
- Superior Functionality: Our T104M heavy-duty timer features a dial and pointer mechanism, both crafted from high-quality metal materials carefully selected by our factory. The dial is made of high-density, heat-resistant material that effectively prevents deformation at high temperatures—making it ideal for use as a timer for outdoor pool pumps. The Wg1573-5 motor, meanwhile, utilizes high-quality copper wire. Replacing your existing timer with our new pool timer will help restore normal operation to your pool pump, lighting, and other equipment. The T104M timer switch is your best choice.
- Warranty: The T104M Pool Timer comes with a 1-year warranty, designed to ensure your timer operates flawlessly for years to come. Your satisfaction is our top priority. If you have any questions regarding the installation or use of the pool timer, please feel free to contact us at any time. Our customer service team is available 24 hours a day to assist you.
Overview
- Color : Black
- Brand : GTGUGR
- Material : Metal

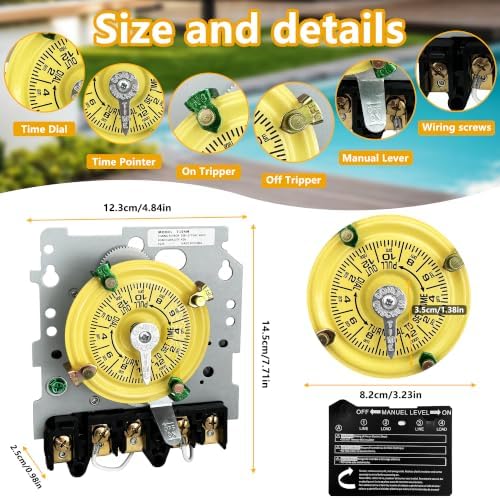

- Product Dimensions : 3.94"D x 1.18"W x 1.97"H
- Unit Count : 1 Count
