T104 Mechanical Timer Switch, Pool Pump Timer, 208-277V 40A DPST
T104 Mechanical Timer Switch, Pool Pump Timer, 208-277V 40A DPST
Timers
Product details
About This
- HIGH-POWER HEAVY DUTY PERFORMANCE – Requires a 208–277V AC, 60Hz supply for the timer mechanism. The DPST switching contacts support up to 40A resistive or inductive loads.
- FLEXIBLE 24-HOUR SCHEDULING WITH 12 ON/OFF CYCLES:Supports up to 12 ON events and 12 OFF events per day when additional compatible trippers are installed. One ON tripper and one OFF tripper are included for one daily ON/OFF cycle.
- INDOOR TYPE 1 METAL ENCLOSURE:Designed for indoor use with a Type 1 enclosure, this timer. It requires 90°C copper conductors only and features secure terminal connections with pressure plates to prevent loose wiring. The built-in manual override lever lets you bypass the schedule temporarily without disrupting your programmed settings.
- RELIABLE MECHANICAL OPERATION WITH MANUAL OVERRIDE:No batteries or complex programming required—just the rugged mechanical design you can trust. The manual lever lets you manually turn devices on/off at any time, while the 60 Hz clock motor maintains accurate timekeeping. In case of power failure, simply reset the dial to restore your schedule, ensuring minimal downtime for your pool or equipment.

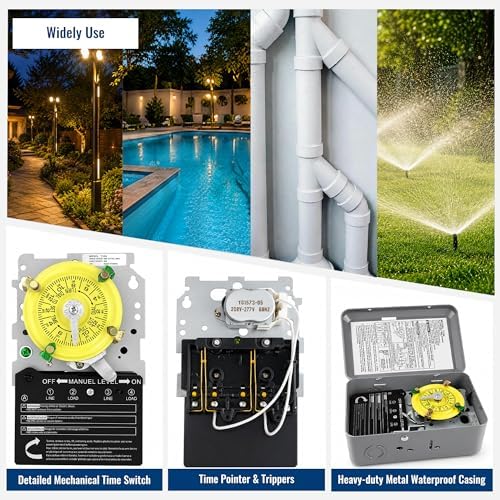

- VERSATILE FOR POOL, SPA, HVAC & INDUSTRIAL APPLICATIONS:This DPST timer is purpose-built for high-demand applications. Common uses include pool pumps, hot tubs, HVAC systems, industrial fans, lighting circuits, and commercial equipment. The 277V compatibility also makes it suitable for commercial-grade lighting and motor control systems.
Overview
- Operation Mode : ON-OFF
- Current Rating : 40 A
- Operating Voltage : 208 volts_of_alternating_current
- Connector Type : Screw Terminal
- Brand : Rumngsuy
- Switch Type : Rotary
- Terminal : Screw
- Material : Metal
- Item dimensions L x W x H : 5.31 x 3.15 x 8.07 inches
- Contact Material : Copper
