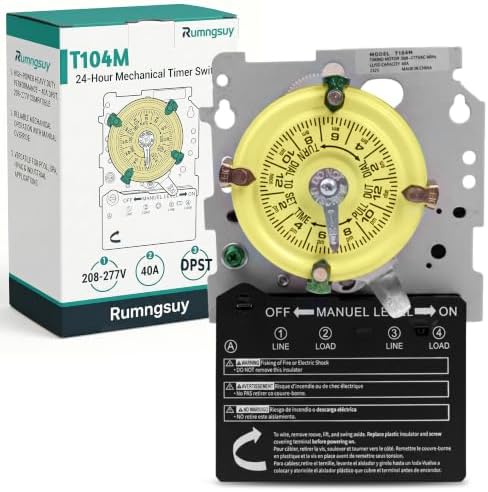

T104M 24-Hour Mechanical Timer Mechanism, Pool Timer,208-277V DPST
T104M 24-Hour Mechanical Timer Mechanism, Pool Timer,208-277V DPST
Timers
Product details
About This

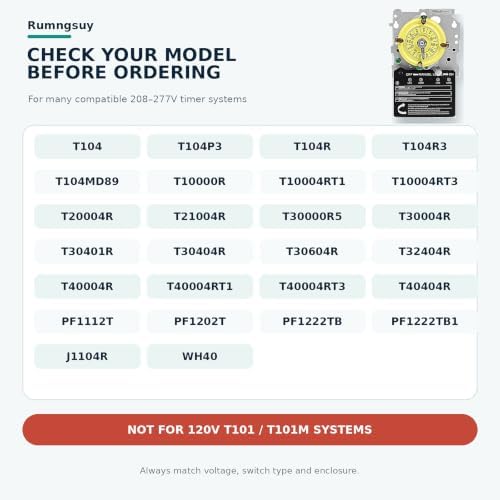

- REPLACEMENT T104M POOL PUMP TIMER MECHANISM: Standalone internal timer movement without metal enclosure, direct snap-in replacement core compatible with T104 indoor housing and T104R NEMA 3R rainproof outdoor boxes, perfect swap for broken original 208-277V pool pump & spa heater timer inner assembly.

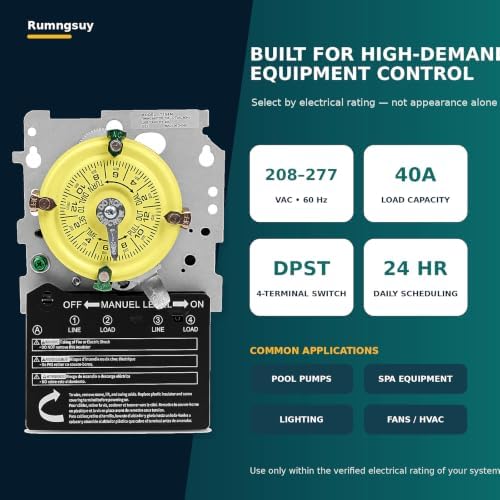

- DPST DOUBLE-POLE HEAVY DUTY LOAD RATING: T104M Pool Timer Mechanism Only, Rated 208-277V 60Hz, 40A resistive/inductive/tungsten load, supports max 5HP single-phase motor at 240V; low 3W clock motor power draw, safely controls high-wattage dual-line pool filtration and heating systems.

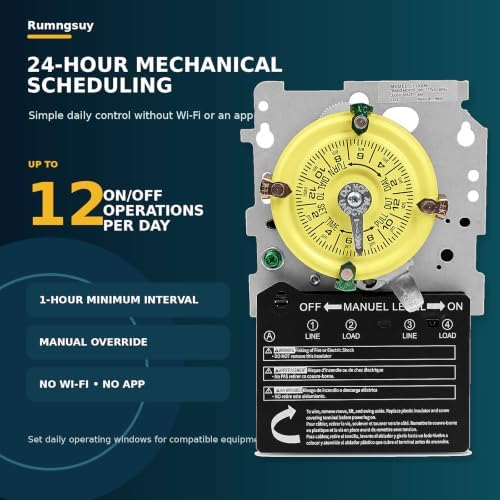

- FLEXIBLE 24-HOUR DAILY SCHEDULING DIAL: Bright yellow mechanical dial of this pool timer supports up to 12 independent ON/OFF cycles daily with minimum 1-hour interval; built-in manual override lever enables temporary pump operation without erasing preset pool circulation schedules, includes one matched ON/OFF trippers.

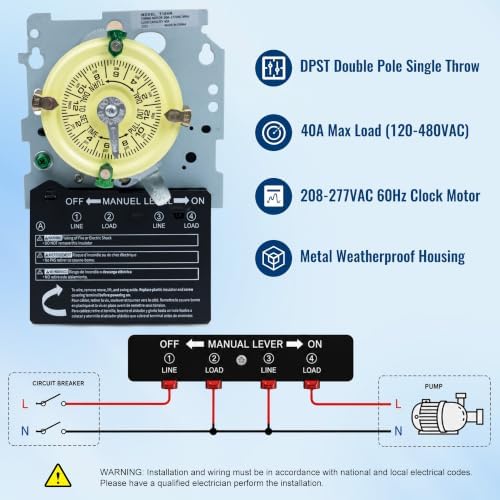

- SIMPLE TEETER TERMINAL WIRING & WIDE TEMPERATURE RANGE: Time Switch Mechanism Only,Pressure terminals fit #14–#8 AWG copper wiring, quick snap mounting for DIY replacement; all-metal gear mechanism stably operates from -40°F to 130°F, reliable for year-round residential & light commercial pool equipment control.
- CERTIFIED MULTI-PURPOSE TIMER CORE: Standard T100 series replacement movement not limited to T104M pool pump timer use, also controls fountain pumps, landscape lighting, HVAC blowers and 277V high-power loads, backed by 1-year limited manufacturer warranty.
Overview
- Color : Silver
- Brand : Rumngsuy
- Material : Metal
- Product Dimensions : 3.15"D x 2"W x 3"H
- Unit Count : 1 Count
