4715 3-Way Pool Diverter Valve, 1-1/2 to 2 Inch, Compatible with Jandy 4715
4715 3-Way Pool Diverter Valve, 1-1/2 to 2 Inch, Compatible with Jandy 4715
Pool Spa Replacement Parts
Product details
About This

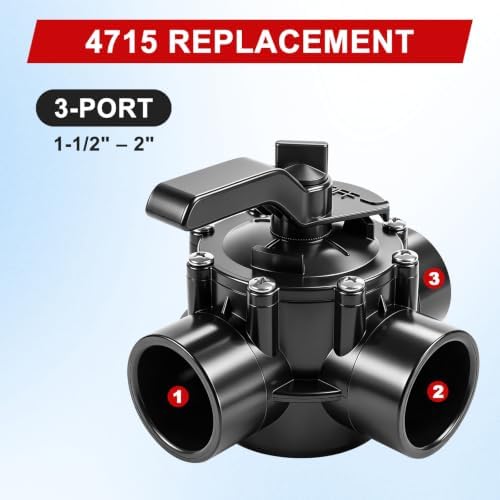

- 【4715 3-Way Pool Valve】 Designed as a replacement compatible with Jandy 4715 applications for 1-1/2" to 2" pool and spa plumbing. The 3-port layout is made for systems that use one diverter valve to manage connected water lines while maintaining the familiar 4715-style configuration

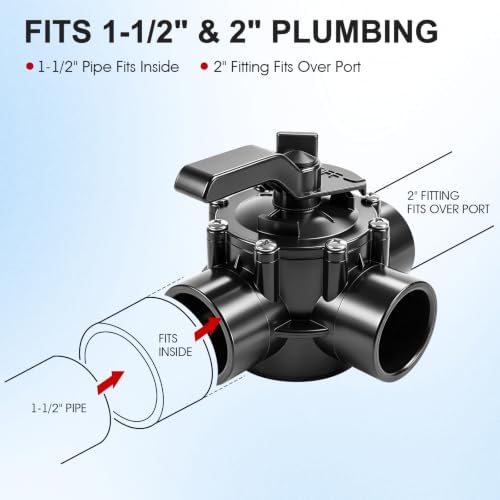

- 【Fits 1-1/2" & 2" Plumbing】 Each valve port accepts 1-1/2" pipe inside the socket, while 2" fittings or couplers connect over the outside of the same port. All three ports use this dual-size connection layout, helping you confirm the existing plumbing before installation

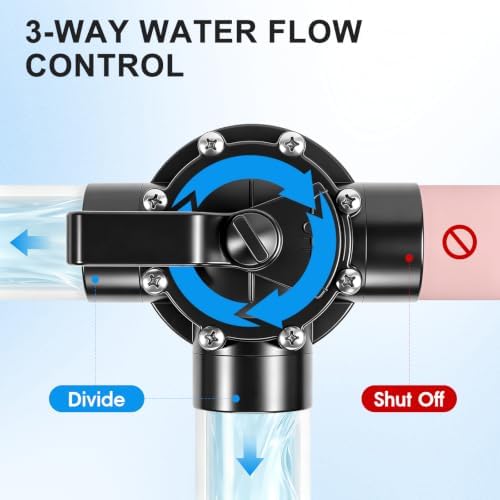

- 【3-Way Water Flow Control】 Turn the handle to position the internal diverter and direct, divide or shut off water between connected lines. Suitable for common pool and spa circulation, bypass and return-line plumbing where water needs to be routed between different parts of the system

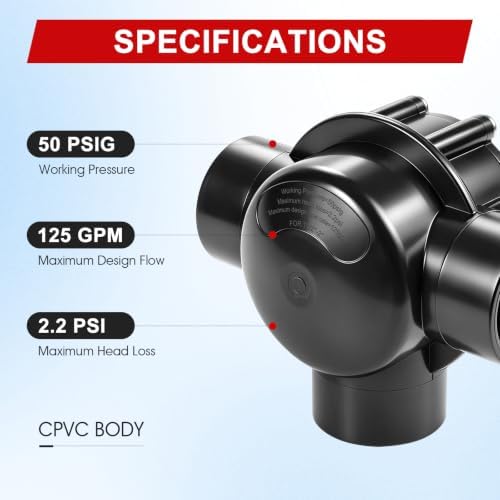

- 【Specifications】 The valve body is marked for 50 PSIG working pressure, 125 GPM maximum design flow rate and 2.2 PSI maximum head loss. The CPVC body completes the 3-port valve structure for pool and spa plumbing applications
- 【Dry-Fit Before Installation】 Position the valve with your existing pipe and fittings before permanent glue-up. Confirm the port size, valve orientation and handle clearance, then complete the connection once the plumbing layout is correct. Package includes one complete assembled 3-port diverter valve
Overview
- Brand : Smark-Premium
- Item dimensions L x W x H : 7 x 6 x 6 inches
- Exterior Finish : CPVC
- Maximum Operating Pressure : 50 psi
- Number of Ports : 3
- Outlet Connection Size : 1.5 inches
- Number of Packs : 1
- Unit Count : 1 Count
- Item Highlight : 3-Port Pool/SPA Valve; 1-1/2" Pipe Fits Inside Each Port and 2" Fittings Connect Over the Outside for Common 4715 Plumbing 3-Port Pool/SPA Valve; 1-1/2" Pipe Fits Inside Each Port and 2" Fittings Connect Over the Outside for Common 4715 Plumbing
- Manufacturer : SmarkAuto
